If you’re experiencing frequent power outages or want to cut down on your electricity bills, installing solar panels on your rooftop can be a smart and sustainable solution. Solar energy is renewable and eco-friendly, making it a great way to power your home. Here’s a comprehensive guide from vigoodsolartek to help you get started with installing solar panels, complete with essential tips and safety steps.
Off-Grid Solar Panel Installation Process
Step 1: Gather Your Solar Components First, assess your roof to ensure it has the capacity to hold the solar panels. You’ll need to check if it has a south-facing orientation, enough room for the wiring, and is strong enough to bear the panel weight. Once everything checks out, gather the required components, such as PV modules (panels), an inverter, batteries (for off-grid setups), and other materials for installation, known as the balance of system (BoS) components. For high-quality, reliable solar products, vigoodsolartek offers a range that caters to various energy needs.
Here’s a quick checklist of components needed based on the system size:
| Si. No. | Component | 1kW | 3kW | 5kW |
|---|---|---|---|---|
| 1 | Solar Panel | ✓ | ✓ | ✓ |
| 2 | Inverter | ✓ | ✓ | ✓ |
| 3 | Battery | ✓ | ✓ | ✓ |
| 4 | Panel Stand | ✓ | ✓ | ✓ |
| 5 | DC Wire | ✓ | ✓ | ✓ |
| 6 | AC Wire | ✓ | ✓ | ✓ |
| 7 | MC4 Connector | ✓ | ✓ | ✓ |
| 8 | DCDB | ✘ | ✓ | ✓ |
| 9 | ACDB | ✘ | ✓ | ✓ |
| 10 | Earthing Kit | ✘ | ✓ | ✓ |
| 11 | Lightning Arrester | ✘ | ✓ | ✓ |
| 12 | Cable Tray | ✘ | ✓ | ✓ |
| 13 | PVC Pipe | ✓ | ✓ | ✓ |
| 14 | Civil Materials | ✓ | ✓ | ✓ |
Step 2: Move Materials to the Rooftop Carefully transport the solar panels and other materials onto the roof. Be mindful that each panel can weigh up to 32 kg, so handling them carefully is crucial to avoid damage. For small setups, you can use manpower; for larger projects, consider a chain pulley system for safer handling.
Step 3: Install the Mounting Structure Once the materials are on the rooftop, set up the mounting structure. Ensure the legs are placed correctly—the shorter leg at the front and the taller at the back—to allow the panels to capture maximum sunlight. Secure the structure with M10 fasteners.

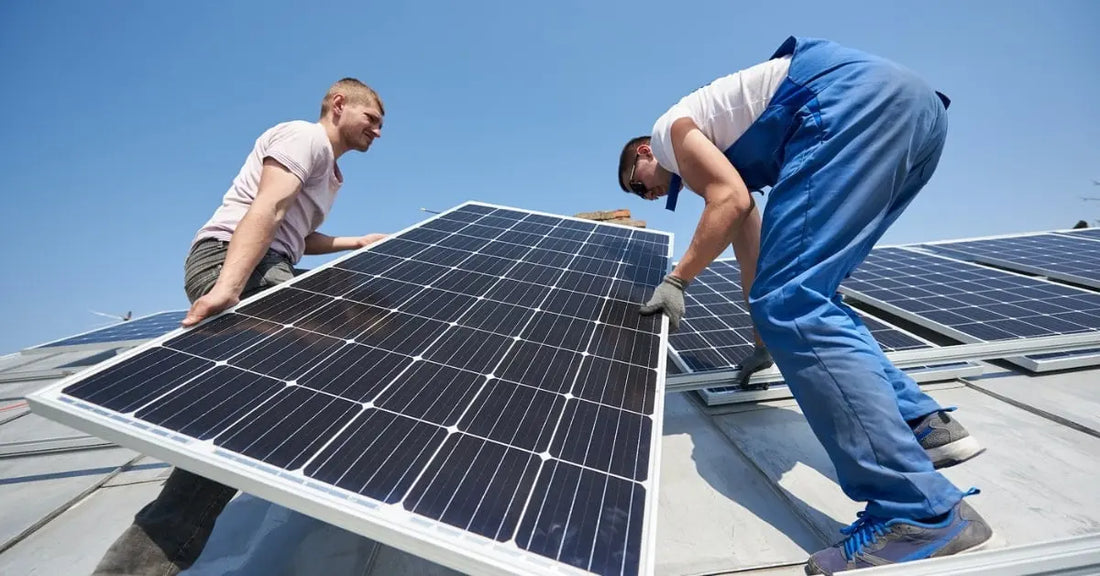

Step 4: Attach the Solar Panels With the mounting structure in place, secure each panel to it using bolts and nuts. Double-check that all panels are tightly fastened to withstand wind and other elements.
Step 5: Install the Inverter Install the inverter to convert solar energy into usable electricity for your home. Place the inverter in a sheltered area, ideally away from direct sunlight and rain, and at a height of 5-6 feet from the ground for easy maintenance.
Step 6: Install the Battery (If Needed) For off-grid or hybrid systems, you’ll need a battery to store excess energy. Batteries are optional for grid-connected systems. Lead-acid batteries need to be connected in series, while lithium batteries don’t require this step.
Step 7: Install DCDB & ACDB Install the DC Distribution Box (DCDB) and AC Distribution Box (ACDB) near the inverter to manage power flow between the panels, inverter, and household. Position the DCDB on the left and the ACDB on the right, keeping them about 1.5 feet apart for easy access.
Step 8: Install the Lightning Arrester & Earthing Kit For safety, install a lightning arrester and earthing kit to protect the system from lightning strikes. Off-grid setups typically require three earthing setups: one for the DCDB, one for the ACDB and inverter, and one for the lightning arrester.
Step 9: Complete the Wiring Now that the physical setup is complete, proceed to the wiring. This step involves connecting wires from the solar panels to your home's load and is best handled by a professional. Double-check each connection to ensure everything is secure.
Step 10: Test the System Finally, test your solar system to ensure everything functions correctly. For grid-connected systems, verify the connection to the electricity meter. For off-grid or hybrid systems, test load distribution to ensure smooth energy flow. Once satisfied with the setup, clean the installation area.
Essential Tools for Rooftop Solar Installation
To complete a rooftop solar installation, you’ll need various tools, including wrenches, drills, fasteners, and safety gear. Here’s a list of essential tools:
| Si. No. | Tool |
|---|---|
| 1 | Measurement Tape |
| 2 | Clamp Meter (AC/DC) |
| 3 | Drill Machine |
| 4 | Welding Machine |
| 5 | Keys |
| 6 | Small DG Set (Remote) |
| 7 | Pliers |
| 8 | Screwdriver |
| 9 | Wire Stripper |
| 10 | Wire Cutter |
| 11 | Crimping Tool |
| 12 | Water Balance Tool |
| 13 | Hammer |
| 14 | Lighter |
| 15 | Chain Pulley |
| 16 | Compass & Angle Checker |
| 17 | Caps |
| 18 | Gloves |
| 19 | Safety Belt |
| 20 | Safety Shoes |
Skills Needed
Installing solar panels requires technical expertise, often provided by vocational training (such as ITI) or engineering courses. Experience with electrical work is highly beneficial.
| Requirement | Details |
|---|---|
| Education | ITI/B.Tech |
| Experience | 1 year or 5 installations |
| Certification | Government/Company |
| Age | 18+ |
| Gender | Male/Female |
Conclusion
This guide from vigoodsolartek is intended to help anyone interested in installing a solar panel system at home. With India’s ambitious goal of generating 500 GW of renewable energy by 2030, solar power is a vital component in achieving a sustainable future. Explore vigoodsolartek’s solutions to find the best solar products to power your home, reduce your bills, and contribute to a cleaner environment!
