5 Years Warranty

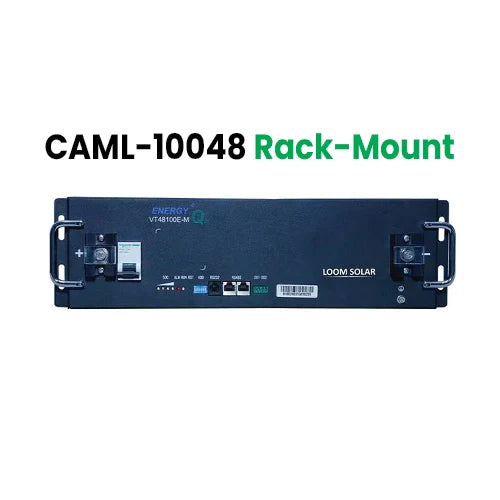

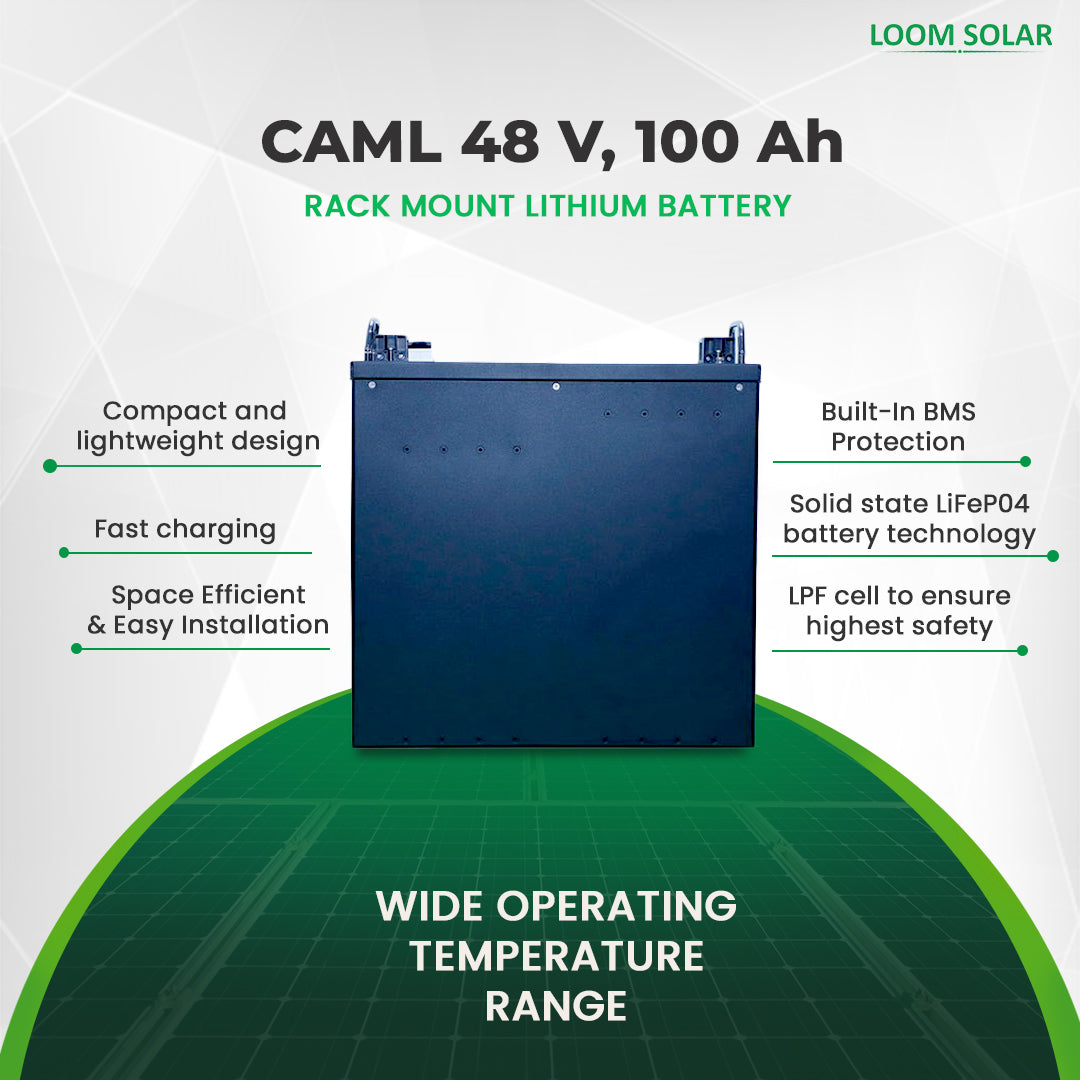

CAML 48 V 100 Ah, 5 kWh Lithium Battery - Rack Mount

Name: CAML 48 V 100 Ah, 5 kWh Lithium Battery - Rack Mount
Brand: 5 Years Warranty
SKU: CAML10048 Rack-Mount
Price: 90000.00 INR
Availability: InStock

Rs. 90,000.00

~~Rs. 120,000.00~~ Rs. 90,000.00

Sale Sold out

Quantity

CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance. CAML 48 V 100 Ah Lithium-ion battery provides a safe operating voltage and Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 3500 charge cycles and fast charging capabilities, allowing the battery to charge fully in just 2-4 hours. This lithium battery is easy to maintain and carry and also offers a space-saving storage solution, ideal for both domestic and commercial applications. Its durability, long lifespan, and performance make it a superior choice over traditional Lead Acid SMF batteries. This battery operates efficiently in a wide temperature range and weighs almost one-quarter of traditional SMF and Lead-Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.

Fast Charging - Battery gets charged 100% in just 2-3 hours.
Longer life - Compared to Lead-acid and SMF, the Lithium battery has a 3,500-cycle life. life, which translates into 10-15 years of usable life.
Light Weight - The weight of a lithium battery is 1/4th of Other comparable batteries, such as SMF and lead acid batteries.
Zero Maintenance- Free, no memory effect.
Expandable - Battery bank Expandable in parallel.
Safe - Safest battery with modular design.
Temperature Range - Wide operating temperature range.
Installation - Quick and Easy Installation.

Applications

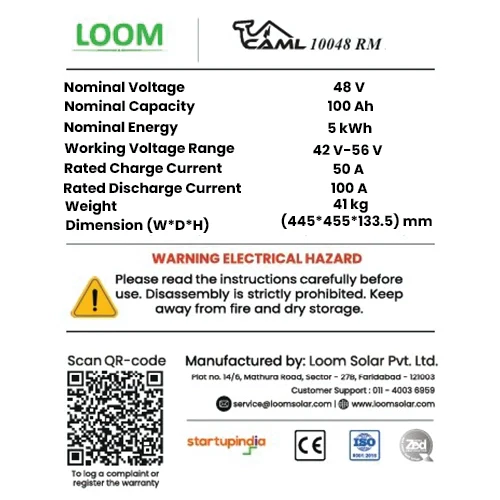

Technical Specifications

Manufacturer	Loom Solar
Rated Capacity	100 Ah
Voltage	48 V
Charging Cut-off Voltage	48 V
Recommend Charge Current	0.2 C, 20 A
Max. Charge Current	0°-15°C: 20 A, 15°-45°C: 50 A
Operating Temperature Range	-20°C to 65°C
Environment	Indoor
Max. Output Power	5.0 kW

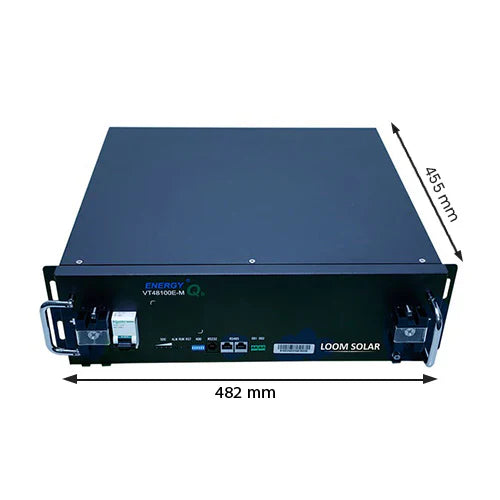

Installation	Rack-Mount
Model Number	CAML-10048 RM
Communication Port	CAN / RS-485 for inverter communication
Protection Class	IP65
Grid connection	Off-grid, Hybrid grid
Product name	CAML Wall Mounted Lithium-Ion Battery
Cell Technology	Lithium Iron Phosphate (LiFePO4)
Cycle life	3500 Times @ 80% DoD
Warranty	5-year
Protection	Smart BMS Protection with Communication
Efficiency	98%

Certifications

UN38.3, RoHS, MSDS, CE

Service

Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase.

Caution📢

Do not throw batteries into the fire.
Do not short-circuit.
Do not heat or disassemble batteries.
Never keep batteries near sources or in high temperatures.
Read the application's instruction manual carefully before use.
Charging the battery with 50A constant until 56.16V at room temperature 20 degrees C+/-5 degrees C.

Warning⚠️

DANGER! Chemical Hazard & Shock Hazard

Do not disassemble or repair the battery by yourself.
Do not drop, deform, impact, cut, or spear the battery with a sharp object.
Do not apply strong pressure to the batteries or handle them roughly.
Keep batteries away from direct sunlight, high temperatures, and high humidity.
Please keep the battery away from liquid.
Keep batteries out of reach of children.
If you notice signs that the battery has a problem, such as overheating, odour, leaks, bulging, or a change in colour/shape, shut off the device and move it away from anything that can catch on fire.
Avoid charging or storing batteries at high temperatures. High temperatures might ignite the battery and cause a fire.

Danger❗

Do not parallel connect with different batteries.
Do not connect the battery to AC power directly.
Do not connect the battery to PV wiring directly.
Do not connect batteries in series.
Do not connect the battery to a faulty or unqualified inverter or charger.
Do not place the battery near an open flame or flammable material.
Do not place the battery in a child or pet-touchable area
Do not short-circuit the external connection.
Do not place the battery under direct sunlight.

Warning⚠️

Recharge the battery every six months.
Recharge the battery within 10 days after the battery is fully discharged.
Please engage the correct multiple batteries based on the inverter's maximum charge and discharge current.
Make sure the grid power is cut off and the battery is powered off before installation.
Make sure the earthing cable is connected correctly before operation.
Power off the battery and disconnect the power connections before maintenance
