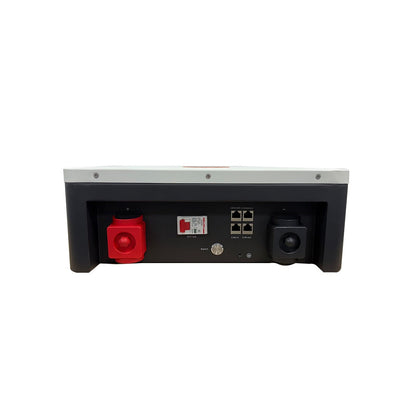

CAML 25.6 V 100 Ah, 2.56 kWh LiFePO4 Wall-Mount - Lithium Battery
CAML 25.6 V 100 Ah, 2.56 kWh LiFePO4 Wall-Mount - Lithium Battery
Couldn't load pickup availability

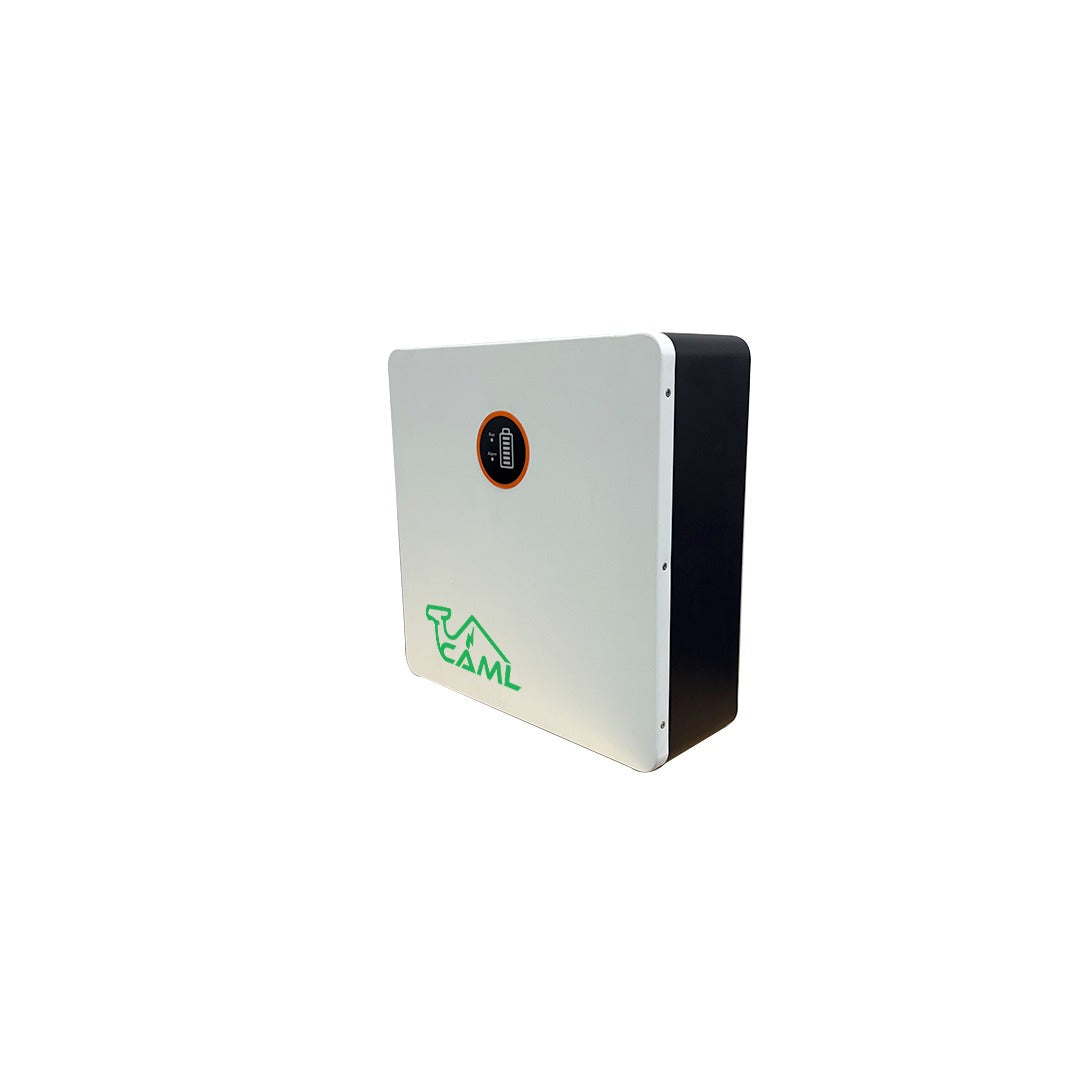

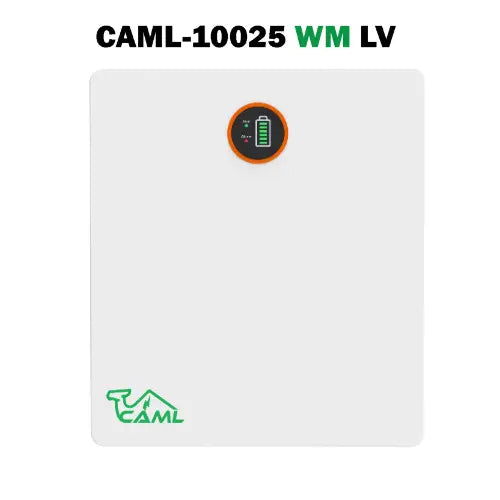

The CAML 10025 is a wall-mounted lithium battery designed for residential solar systems. Built with high-quality LiFePO4 cells, it offers a long cycle life and is compatible with a wide range of hybrid, on-grid, and off-grid inverters. The battery features a compact design for easy installation, flexible capacity, and safety mechanisms to protect against overcharging and short circuits. An LED display for real-time monitoring and easy communication capabilities provides a reliable and efficient energy storage solution for homes.
- Perfect for Residential Use: Designed for home use, this wall-mounted lithium battery is ideal for residential solar energy systems.
- High-Quality LiFePO4 Cells: Built with premium LiFePO4 cells, ensuring excellent performance and longevity.
- Long Cycle Life: Provides a long cycle life, making it a durable and cost-effective choice for long-term use.
- Compatible BMS: The Battery Management System (BMS) is compatible with various brands of inverters, whether for hybrid, on-grid, or off-grid systems.
- Unique Design: Its compact and sleek design allows for easy wall-mounting and saves space in your home.
- Flexible Capacity: Offers flexible capacity to meet different energy needs, ensuring the battery suits a wide range of residential setups.
- Safe & Reliable: Features built-in safety mechanisms that protect against overcharging, over-discharging, and short circuits for added reliability.
- LED Display: Equipped with an LED display to show real-time battery status, providing users with clear visibility of battery health and charge levels.
- Easy Installation: Simple to install with user-friendly setup and communication capabilities for integration with your solar system.
- Warranty: Comes with a 5-year manufacturing and performance warranty for long-term reliability.

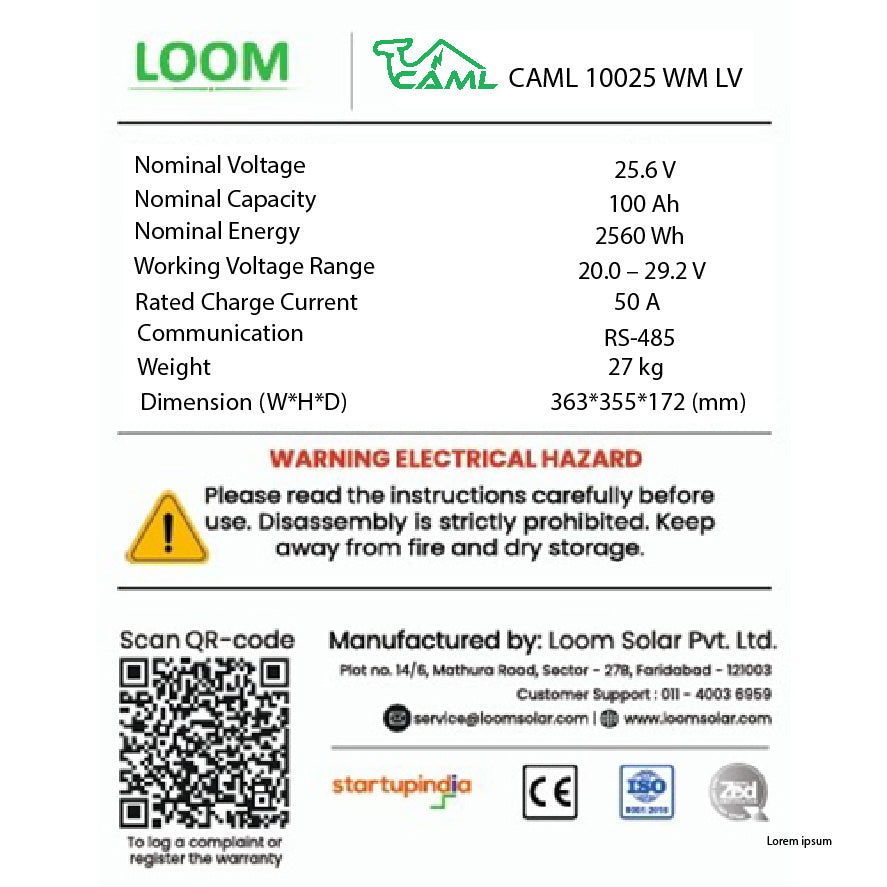

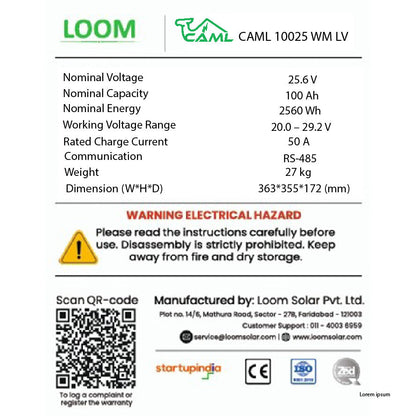

Technical Specifications
|
Manufacturer |
Loom Solar |
|
Model Number |
CAML 10025 WM |
|
Cell Technology |
Lithium Iron Phosphate (LiFePO4) |
|
Rated Capacity |
100 Ah |
|
Nominal Voltage |
25.6 V |
|
Charging Cut-off Voltage |
28.08 V |
|
Max. Voltage Range |
20.0 – 29.2 V. Shipping Voltage > 25.6 V |
|
Recommend Charge/Discharge Current |
0.2 C, 50 A |
|
Max. Charge / Discharge Current |
0°-15 °C: 20 A, 15°-45 °C: 100 A |
|
Operating Temperature Range |
-20 °C to 60 °C |
|
Nominal Energy |
2560 Wh |
|
Max. Output Power |
2.4 kWh |
|
Installation |
Floor or Wall-Mount |
|
Storage Environment |
20 - 45 in three months; |
|

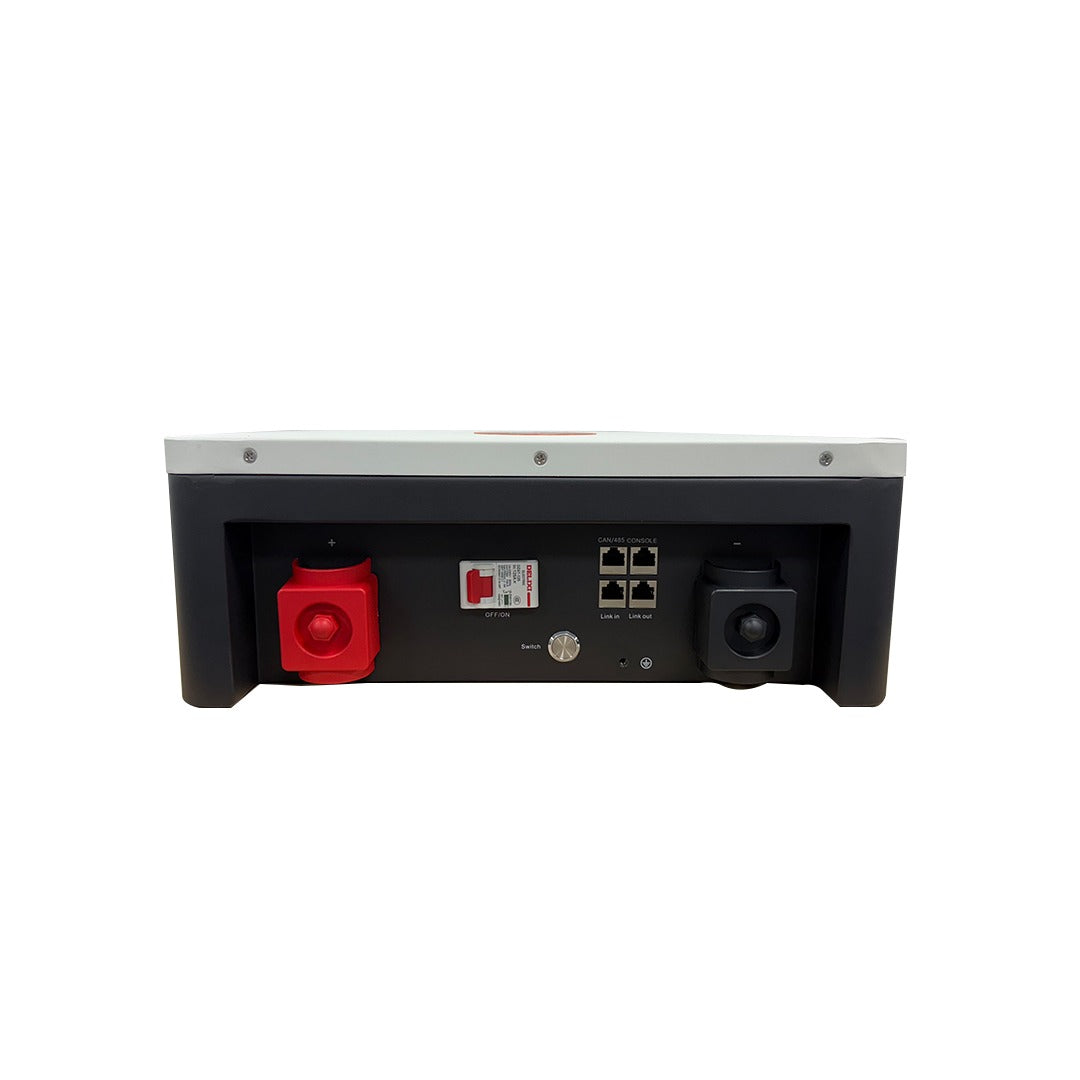

Communication Port |
CAN / RS-485 |
|
Protection Class |
IP54 |
|
Environment |
Indoor |
|
Charge Temperature |
0 - 55 ℃ |
|
Display |
State of Charge (SoC), LED Display |
|
Cycle life |
6000 Times @ 80% DoD |
|
Warranty |
5-year |
|
Protection |
Smart BMS Protection with Communication |
|
Efficiency |
90% |
Shipping Details
|
Weight (including case) |
~27 kg |
|

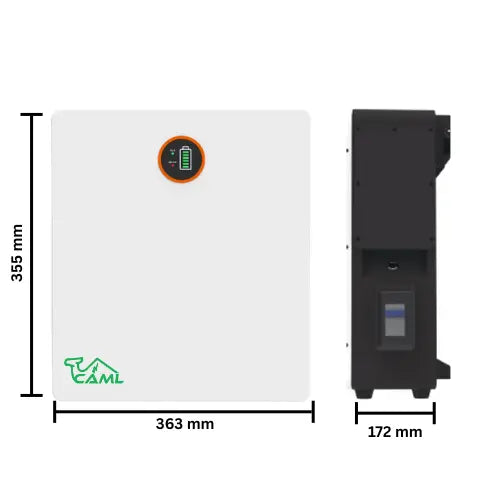

Dimension (L*W*D) |
(355 x 363 x 172) mm |
Certifications
UN38.3, RoHS, MSDS, CE
