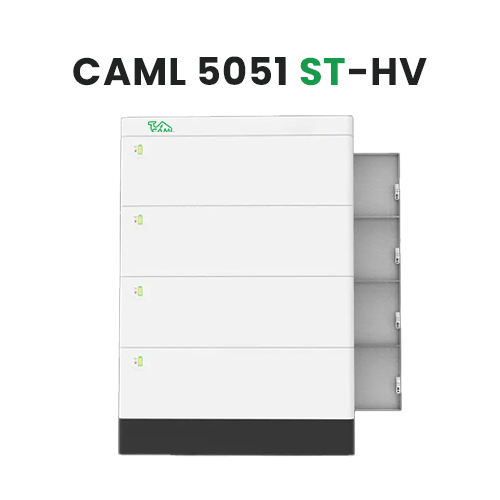

CAML 50 Ah, 204.8 V / 10 kWh High-Voltage Stackable Lithium Battery

Name: CAML 50 Ah, 204.8 V / 10 kWh High-Voltage Stackable Lithium Battery
Brand: 5 Years Warranty
Price: 275000.00 INR
Availability: InStock

Rs. 275,000.00

~~Rs. 321,100.00~~ Rs. 275,000.00

Sale Sold out

Quantity

The CAML 50 Ah, 204.8 V High-Voltage Lithium Battery from Loom Solar with a high-voltage Battery Management System (BMS) is the ultimate solution for high energy demands, making it perfect for restaurants, hotels, hospitals, and large homes. It provides an impressive lifespan of up to 6000 charge cycles, ensuring long-lasting performance. The battery gets fully charged in only 2-3 hours due to its fast-charging capabilities. It is easy to maintain, lightweight, and offers a space-saving solution, making it suitable for domestic and commercial purposes. BMS is compatible with various inverters in the market, including Growatt, Goodwe, Deye, Luxpower, Voltronics, etc., which have transfer-less hybrid inverters. This lithium battery offers a longer lifespan and higher durability, and weighs almost ¼ of other SMF and Lead-Acid batteries.

Scalable Modular Design: This design supports easy system expansion by connecting multiple battery units in parallel. It is suitable for growing energy demands in residential, commercial, or industrial settings.
Easy for Installation: Compact, stackable design for quick and clean setup. Standard connectors and layout reduce installation time and effort.
Multiple Communication: Integrated CAN, RS-485, interfaces for inverter and energy management system (EMS) integration. Enables real-time data monitoring, system control, and diagnostics.
20 Years+ Lifespan: Designed to last over 6000 charge cycles at 80% usage,
providing reliable performance with very little loss over time.
Advanced Battery Management System: Monitors temperature, voltage, and current to ensure safety and balanced charging. Provides reliable protection and optimal performance.

Features

Applications

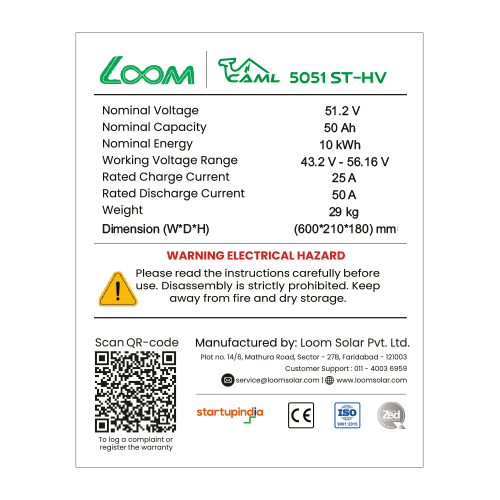

Technical Specifications

Manufacturer	Loom Solar
Rated Capacity	2550 Wh / 51.2 V / 50 Ah
Voltage	51.2 V
Charging Cut-off Voltage	56.16 V
Recommend Charge Current	25 A
Max. Continuous Charge / Discharge Current	0°~15°C: 20 A, 15°~ 45°C: 50 A
Peak Current	100 A
Display	The information about the battery, such as SOC
Communication Port	CAN / RS-485 for Inverter Communication
Installation	Wall-Mount
Model Number	CAML 5051-WM LV
Maximum Parallel Support	4 Cluster (3 to 10 units per cluster)
Charge / Discharge Temperature	0°C ~ 55°C
Environment	Indoor/outdoor Under Roof (Avoid Direct Sunlight)
Relative Humidity	-20% ~ 60%
Cooling	Natural Convection
Protection Class	IP65
Grid connection	Off-grid, Hybrid grid
Product name	CAML Wall-Mount Lithium-ion Battery
Cell Technology	Lithium Iron Phosphate (LiFePO4)
Cycle life	6000 Times @ 80% DoD
Warranty	5-year
Protection	Smart BMS Protection with Communication
Efficiency	98%
