Description

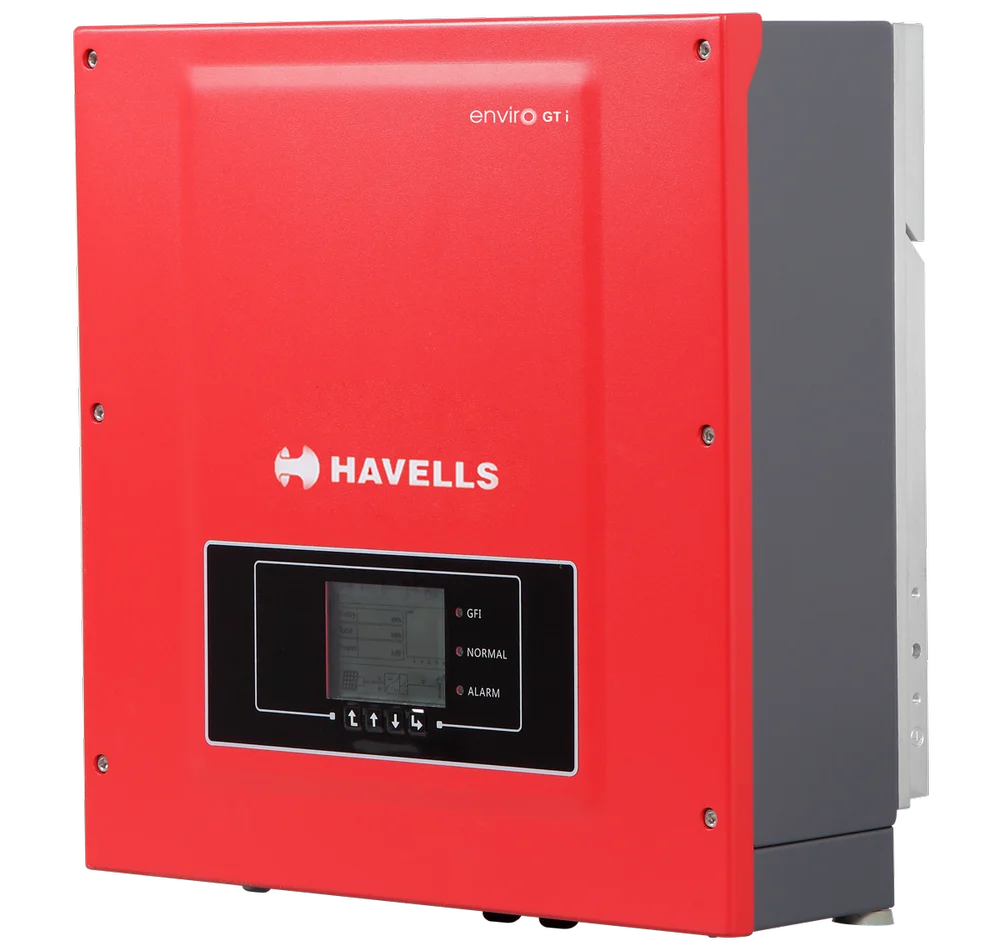

HAVELLS ENVIRO GTI 5000 D 5KW Grid Connected, Dual MPPT 1- Phase Solar Inverter. Protection: DC reverse polarity, Short Circuit, Output Over Voltage, Output Over Current, Insulation, Surge Protection, Grid Monitoring, Temperature Protection.
GENERAL DATA
| Cooling | Natural |
| Degree of Protection | IP 65 |
| Dimension | 40.5 cm x 31.5 cm x 13.5 cm |
| Operating Temperature Range | -25 °C to +60 °C |
| Technology | Transformer less |
| Weight | 11 kg |
TECHNICAL SPECIFICATION
| Maximum Efficiency | 98% |
| Self Consumption at Night | < 1 W |
INPUT
| Max Input Current Per MPPT | 11 A |
| Maximum DC Input Short circuit Current Per MPPT | 13.2 A |
| Maximum Input Voltage | 600 V |
| MPPT Operating Voltage Range | 90 V - 580 V |
| Number of MPPT / String Per MPPT | 2 & 1 |
| Rated Input Voltage | 360 V |
OUTPUT
| Grid Frequency Range | 45 Hz - 55 Hz |
| Maximum AC Power | 5000 VA |
| Maximum Output Current | 22.8 A |
| Nominal Grid Voltage | L/N/ PE , 220 V AC , 230 V AC , 240 V AC |
| Rated Output Current | 18.2 A |
| Rated Power | 5000 W |
PROTECTION
| Degree of Protection | IP 65 |
| SPD | MOV : Type III Standard |
