25 Years* Warranty

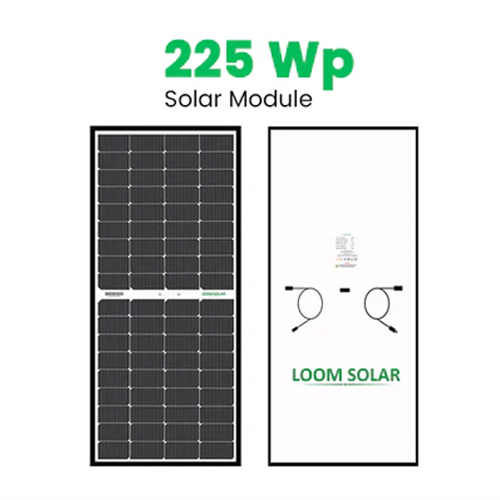

Loom Solar Mono PERC, Half-Cut 225 Wp, 12 V Solar Panel for Inverter Battery Charging
Loom Solar Mono PERC, Half-Cut 225 Wp, 12 V Solar Panel for Inverter Battery Charging
Couldn't load pickup availability
The Loom Solar 225 Wp solar panel is made from A-grade black silicon cells and generates electricity from sunlight. High-quality silicon is used in the cells, which gives them a higher efficiency of up to 20.4% and also helps them perform better in low-light conditions. This monocrystalline panel comes with a warranty of 25 years and features 9 busbars, 72 cells, and 9 busbars. For outdoor use, we provide an IP68-rated junction with MC4 connectors and 1.4 meters of wire.
- Module efficiency of 20.4%
- IP68 waterproof & dustproof junction box
- Two MC4 connectors for connecting DC wires
- Compact & durable
Features Summary
1. Half Cut Mono PERC Solar Cell: This 225 Wp, 12 V solar panel is made of Mono PERC Halfcut Solar Cells, generating extra electricity in low light conditions and taking up less roof space.
2. High Transmission Tempered Glass: With unbreakable tempered glass, it observes the maximum amount of sunlight and projects from a wide variety of objects, such as cricket balls, monkeys, etc.
3. Black Anodized Aluminium Frame: PV modules are encapsulated in strong aluminium frames that protect them from high winds and have multiple mounting holes to be installed at various tilt angles (36°-15°).
4. IP68 Rated Junction Box: Solar cells are connected in series and parallel and the final output goes into an IP68 Junction Box that connects DC wire for charging inverter batteries.
Easy to Use & Portable
The installation of 225W solar panels can be done by consumers or by local electricians who install house wiring and inverter batteries.
This solar panel is used by many shop owners for running DC applications in the daytime, and it is portable so they can use it wherever they want.

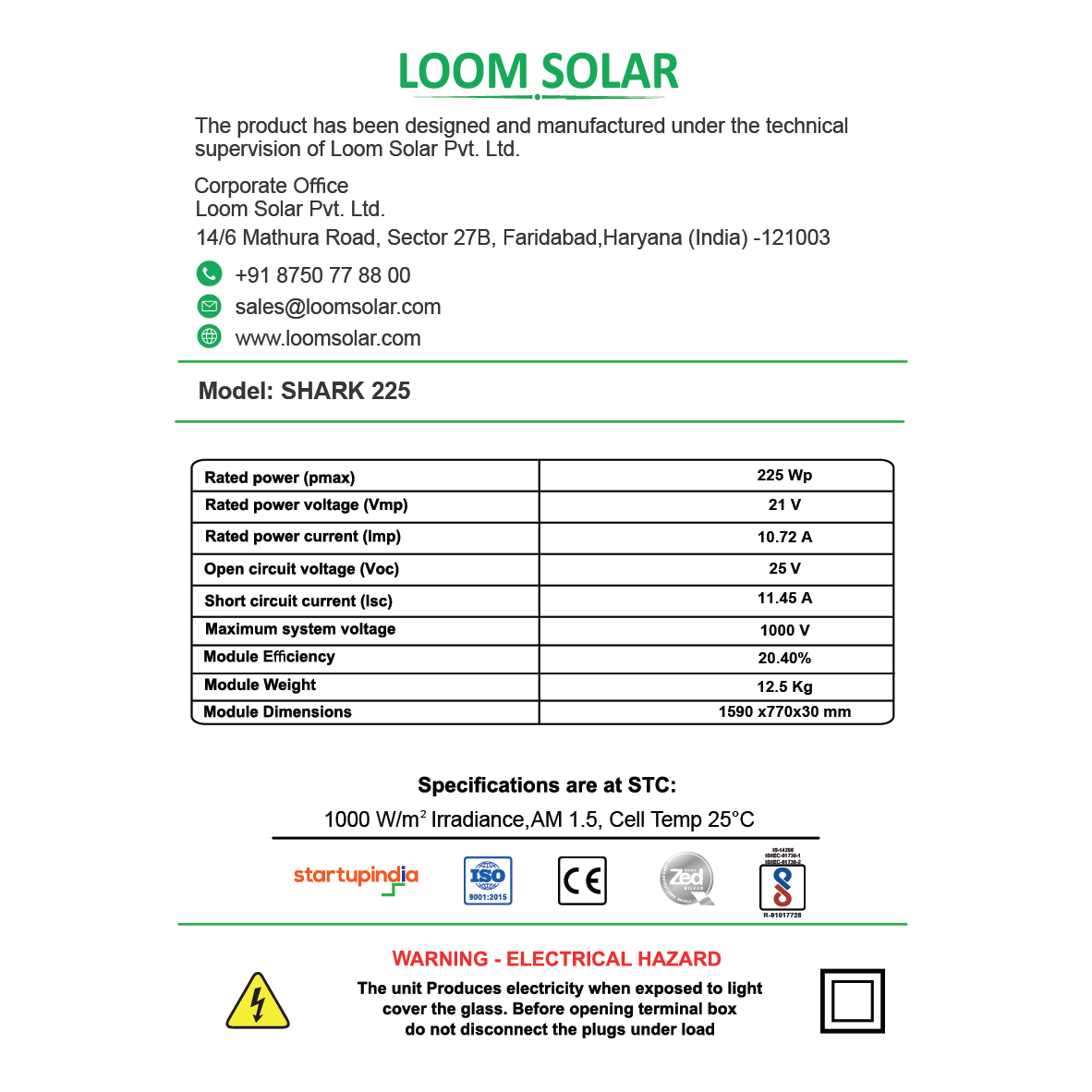

Technical Specifications
|
Brand |
Loom Solar |
|
Nominal power |
225 Wp |
|
Open-circuit voltage (VoC) |
25.00 |
|
Short-circuit current (Isc) |
11.45 |
|
Voltage at maximum power (Vmp) |
21.00 |
|
Current at maximum power (Imp) |
10.72 |
|
Power reduction per °C |
0.45% |
|
Voltage reduction per °C |
0.33% |
|

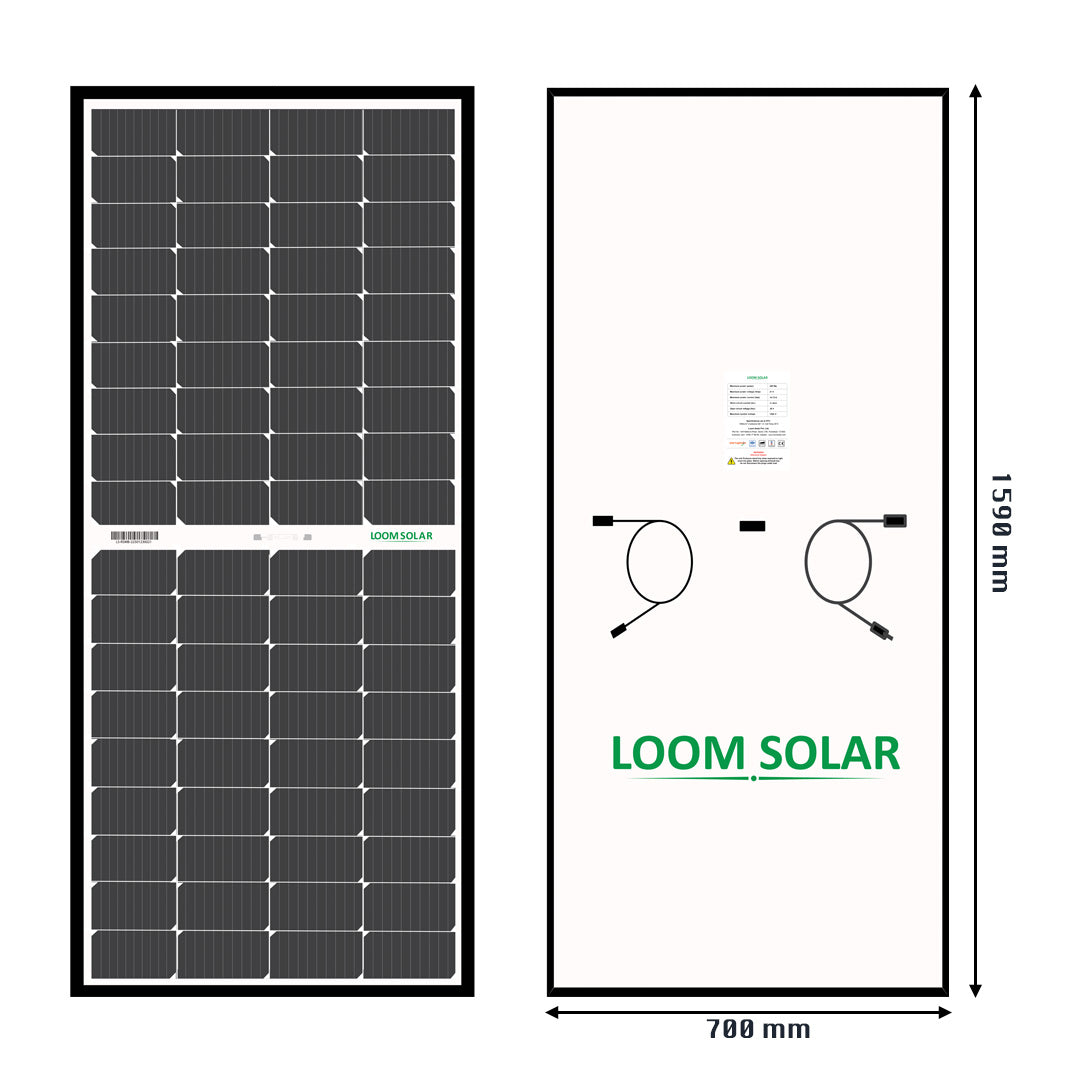

Length |
1590 mm |
|
Width |
700 mm |
|
Weight |
14 kg |
|
Efficiency |
20.4% |
|
No. of solar cell |
72 |
|
Panel Technology |
Mono PERC (latest) |
|
Manufacturer Warranty |
10 years of Manufacturing defects |
|
Performance Warranty |
25 Years |
|
Additional Features |
A+ Grade, anti-PID Mono cells |
|
Cell Conversion efficiency > 20% |
|
|
1.4-meter wire for connection with MC4 connectors Inside |
Product Unboxing Video
How Many Solar Panels Do I Need
| Battery Capacity | No. of Solar Panel |
| 80 Ah | SHARK 225 Wp Solar Panel * 1 |
| 100 Ah | SHARK 225 Wp Solar Panel * 2 |
| 120 Ah | SHARK 225 Wp Solar Panel * 3 |
| 150 Ah | SHARK 225 Wp Solar Panel * 4 |
How to Connect Solar Panels to Inverter or Charge Controller?
FAQ
What is the price of a 12V 225W solar panel?
What will a 225 Wp solar panel run?
Can a 225W solar panel charge a 150Ah battery?
Can a 225W solar panel charge a 24V battery?
Where to buy 225W solar panels?
Download datasheet from here.
