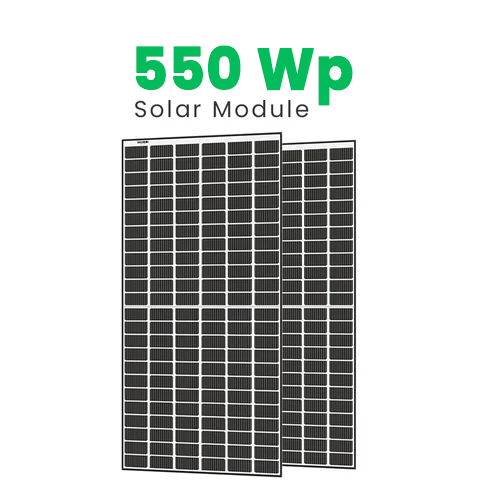

Loom Solar Mono PERC Half-Cut Shark 550 Wp, 144 Solar Cells PV Module (Pack of 2)
Loom Solar Mono PERC Half-Cut Shark 550 Wp, 144 Solar Cells PV Module (Pack of 2)
Couldn't load pickup availability
SHARK 550 Wp solar panel features advanced technology with 144 Mono PERC Half-Cut Solar cells. The performance of this panel is highly efficient in cloudy and foggy weather. This panel is also available in a bi-facial version which can absorb sunlight energy from both sides, enhancing energy generation by producing 30%–50% more power compared to traditional mono-facial panels, even in spaces with limited occupancy. It consists of MC4 IP68-rated compatibility, providing superior waterproofing and dust protection for long-term reliability. Its Half-Cut design reduces the impact of shadows on the panel. This solar panel is compatible with both standalone and on-grid systems.
- Technology – Mono PERC (Monocrystalline Passivated Emitter and Rear Contact), Half-Cut solar cells for better efficiency, and higher energy output.
- Excellent Reliability – Built with premium-quality materials and advanced technology, ensuring consistent performance and durability even in challenging environments.
- High Efficiency – Up to 21.35% module efficiency for superior energy conversion.
- Lower Degradation – Designed for minimal performance loss, ensuring consistent energy generation over time.
- Better Low-Light Performance – Efficiently generates energy even in cloudy and low-light conditions.
- Premium Warranty – Backed by a 10-year manufacturing warranty and a 25-year performance warranty.
Product Unboxing Video
Electrical Specifications
Module Type |
SHARK 550 |
Power (Pm) in watts |
550 |
No. of Cells |
144 |
No. of Bus Bars |
10 |
Voltage at maximum power (Vmp) in volts |
42.74 |
Current at maximum power (Imp) in Amps |
12.89 |
Open Circuit Voltage (Voc) in volts |
49.60 |
Short Circuit Current (Isc) in Amps |
13.72 |
Maximum system Voltage (VDC) |
1500 |
Module Efficiency (%) |
21.35% |
Mechanical Specifications
Junction Box |
IP68 Rated With Diode |
Glass |
High Transmission Low Iron Tempered Solar Glass |
Cells Encapsulate |
Ethylene Vinyl Acetate (EVA) - FC/UFC |
Back Sheet |
Composite Film - White |
Frame |
Black / Silver Anodized Aluminium Frame with Twin Wall Profile |
Mechanical Load Test |
Sustain Heavy Wind & Snow Loads (2400 Pa & 5400 Pa or 550 Kg /m2) |
Max Series Fuse Test |
30 A |
Module Weight (Kg) |
29 kg |
Technology |
Mono PERC |
Annual Electricity Generation (kWh) |
1160 |
Download the datasheet from here.
