Description

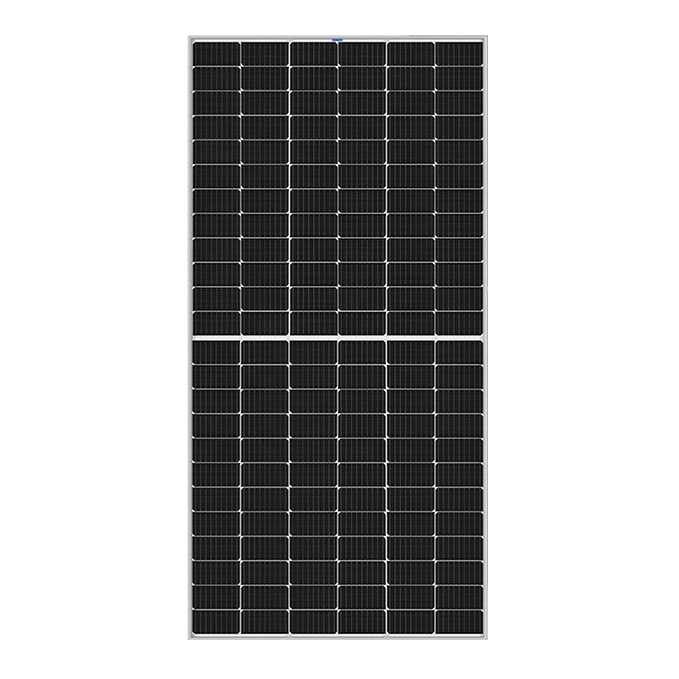

Luminous offers a range of both Mono PERC Half Cut solar panels. Our panels comply with IEC standard and are suitable for a wide range of applications.
Features :-
- Capacity - 550W, 24V
- Voltage: Voltage at Max Power (Vmax) - 41.95V, Open Circuit Voltage (Voc) - 49.80V
- Current: Current at Max Power (imax) - 13.2A, Short Circuit Current (isc) - 13.98A
- 25 years performance warranty.
- Half cut solar cell technology.
- BIS certified as per IS/IEC standards which is mandatory for all solar panels.
- Best in class conversion efficiency.
- Better shading tolerance.
- Excellent hot spot performance.
- Less micro crack impacts.
- Lower resistive losses.
- Excellent Low light performance in low visibility in clouds, evening, and morning.
Technical
wattage (Wp)
550 watts
voltage at max power
41.95 volts
current at max power
13.05 amps
open-circuit voltage
49.80 volts
short circuit current
13.12 amps
Number of Cells
144
SHIPPING DETAILS
Weight
29 Kg
Dimensions L x W x H
227.9*113.4*3.5 CM
