Luminous 5kW Hybrid Inverter + 5.12kWh Lithium Battery Combo
Upgrade your solar power system with a complete 5kW hybrid inverter and lithium battery solution from Luminous. This combo pairs a Luminous 5kW 48V transformerless hybrid inverter with a Luminous Helios 51.2V 100Ah LiFePO4 lithium battery, providing solar generation, energy storage and backup power in one integrated solution.
The hybrid inverter intelligently manages power from your solar panels, battery and grid, while the lithium battery stores available energy for use when required. It is suitable for homes, shops, offices and other applications requiring dependable energy storage and backup.

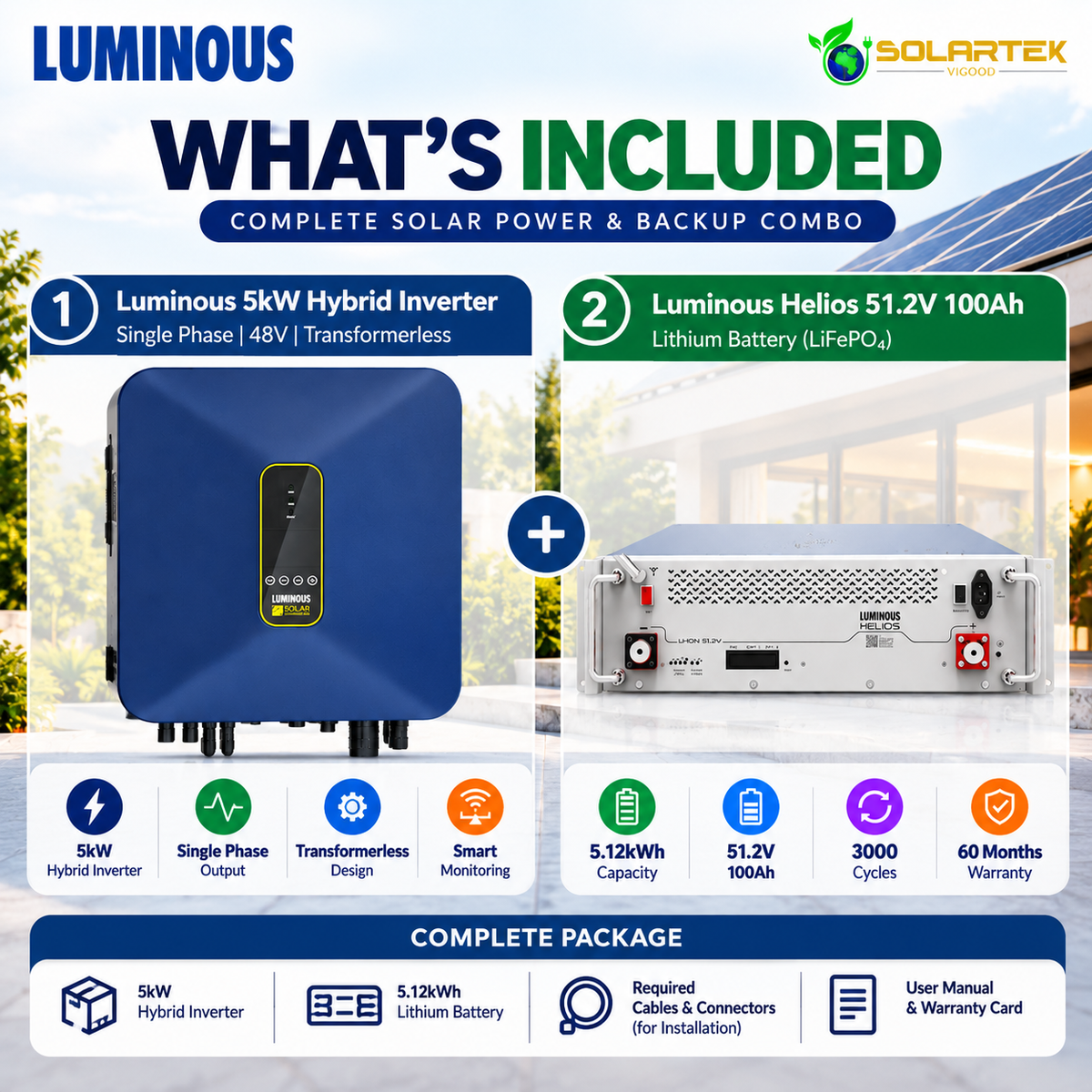

What's Included
- 1 × Luminous 5kW 48V Hybrid Inverter
- 1 × Luminous Helios 51.2V 100Ah Lithium Battery
- Battery capacity: 5.12kWh
- LiFePO4 lithium battery technology

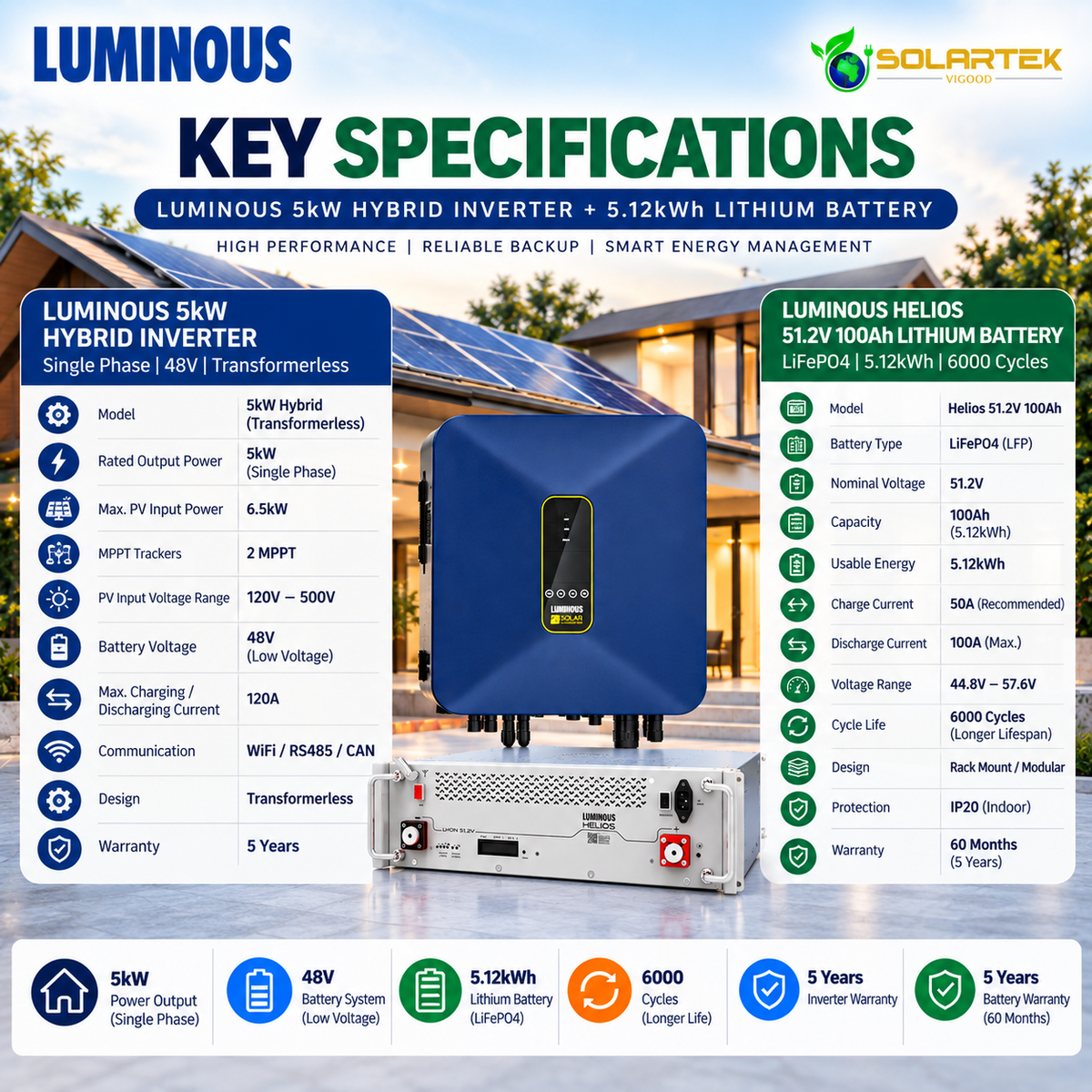

Key Features
- 5kW Hybrid Inverter
- 5kW power output
- Single-phase operation
- 48V battery system
- Transformerless design
- Hybrid solar operation
- Smart energy management
- 5.12kWh Lithium Battery
- 51.2V nominal voltage
- 100Ah capacity
- 5.12kWh energy capacity
- LiFePO4 battery chemistry
- Up to 3000 cycles
- 50A recommended charging current
- Up to 100A discharge current
- 44.8V–57.6V operating voltage range
- IP20 indoor installation
Why Choose This Combo?
☀️ Solar + Battery Integration
Use solar energy during the day and store excess energy in the lithium battery for later use.
🔋 Lithium Energy Storage
The LiFePO4 battery provides a compact and efficient energy-storage solution.
⚡ Reliable Backup
Stored battery energy can help power connected loads during grid outages, subject to system configuration and load requirements.
📱 Smart Monitoring
Monitor and manage your solar energy system using supported inverter monitoring features.
🏠 Versatile Applications
Suitable for homes, shops, offices and small commercial applications, depending on the connected load and installation design.
Ideal For
- Residential solar systems
- Homes requiring battery backup
- Shops and offices
- Small commercial applications
- Solar energy storage systems
- Areas with frequent power interruptions
