Description

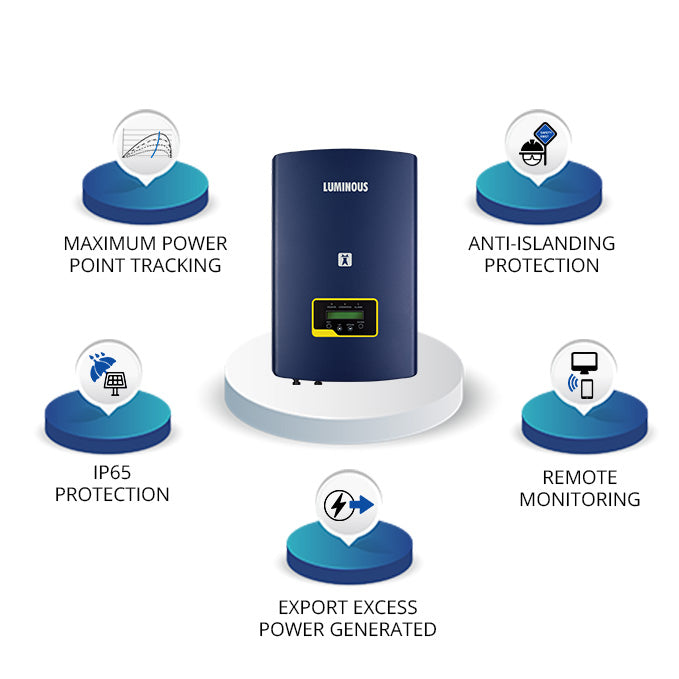

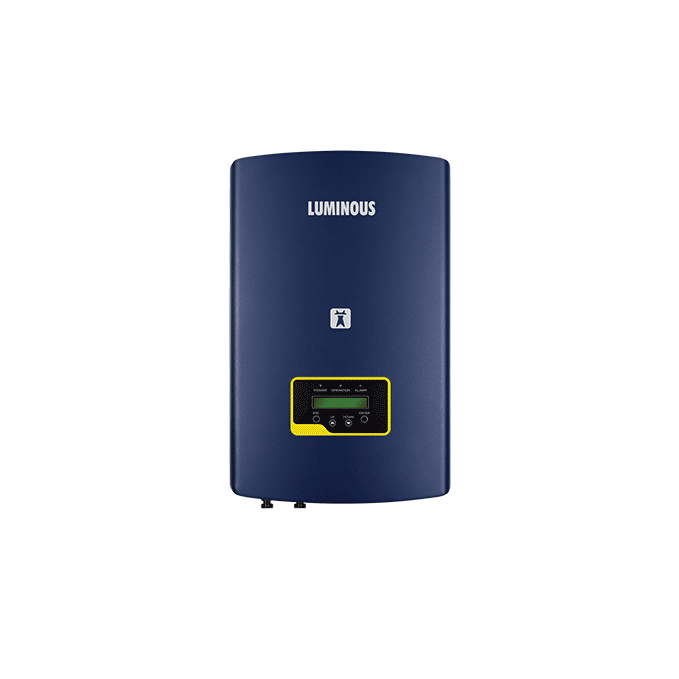

Luminous Nxi Grid Tie Inverter are power Inverter that can feed power from solar panels directly to grid. 97.2% Max. efficiency Wide voltage range and low start-up voltage Friendly and adaptable connection to the grid Super high frequency switching technology Precise MPPT algorithm Compact and lightweight WiFi/GPRS Real time monitoring Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, anti-islanding, residual current detection, User friendly Informative LCD Display
Product Specification
| Capacity | 3KW |
| Brand | Luminous |
| Model | Grid Tie Inverter-Nxi 130 |
| Efficiency | 97.5% |
| Waveform | Pure Sine Wave |
| Battery Type | NA |
| Grid Type | Solar |
| Input Voltage | 80V-500V |
| Max Supported Panel Power | 3500 Wp |
| Warranty | 60 Months |
| Dimensions (in cms) | 31.0*16.0*37.3CM |
| VA Rating | 3000 KVA |
| No. of Batteries Supported | NA |
| Net Weight(In Kg) | 38 Kg |
| Nominal Battery bank voltage | NA V |
| Product Category | On Grid Inverter |
| Usage |
Commercial Applications, Homes and Small Shops |
