Description
NXG range is a solar inverter range that intelligently uses grid and solar power. With ability to operate in a wide voltage range, NXG is the ideal starter solar solution for homes NXG range is a solar inverter range that intelligently uses grid and solar power. With ability to operate in a wide voltage range, NXG is the ideal starter solar solution for homes.
Specifications :-
Specifications :-
- Capacity (VA): 2000VA
- Operating Voltage: 90V-290V
- Max supported panel power: 24V upto 2000 Wp
- Charge Controller Rating: 55 Amp
- Supports double battery
- 24 Months Warranty
- BIS certified as per IS/IEC standards which is mandatory for all solar inverters
- 3 User Settable Saving Modes: Solar Mode, Solar+Grid Mode and Grid+Solar Mode
- View daily solar generation data in all new LCD display screen
- Max Capacity Utilization: Connect Solar Panels equivalent to Solar Inverter’s VA ratings
- Power savings of 1.5 - 3 units per day* with the help of Intelligent Solar Optimization Technique (iSOT)
- Pure Sine wave output for safety of your sensitive appliances and noiseless operations
- Safe for your family and appliances: Short-circuit protection, Over temperature protection, Overload protection, No load shutdown
Technical -
| Brand | Luminous |

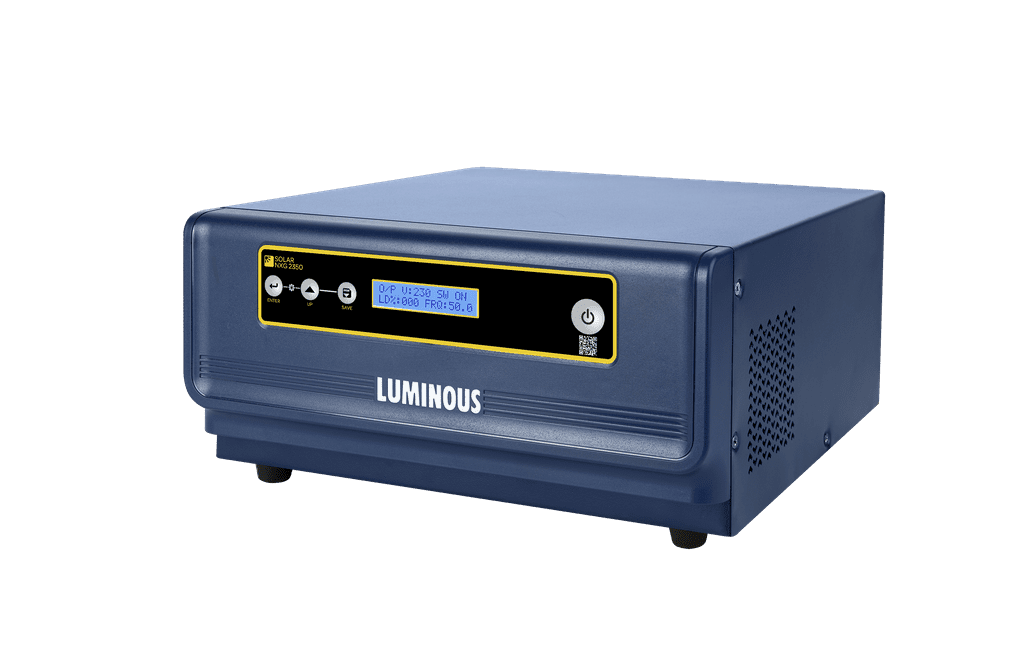

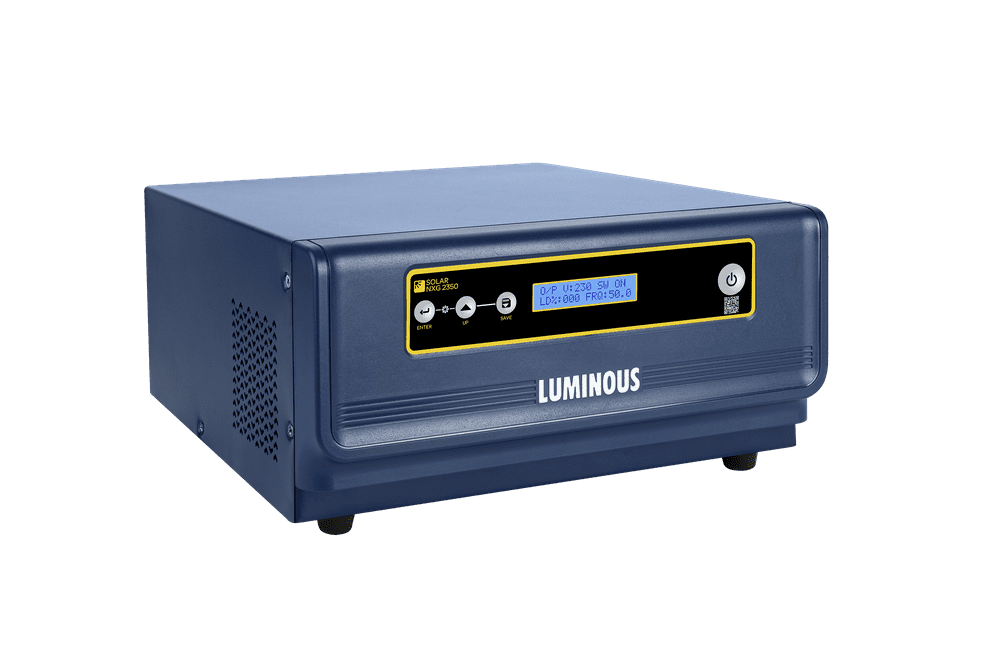

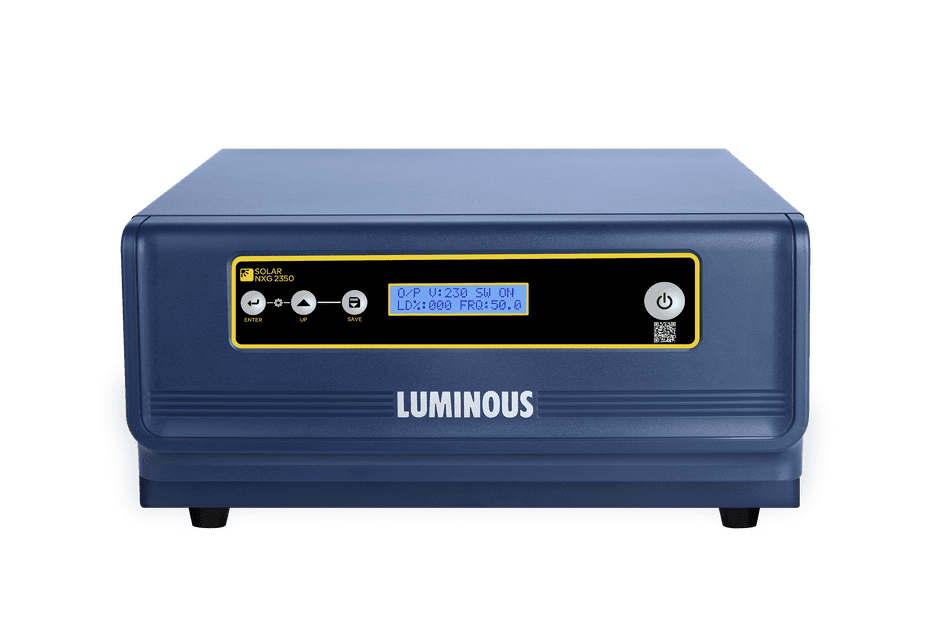

| Model | NXG 2350 |
| Capacity | 2000 VA |
| Grid Type | 24V DC |
| Max Supported Panel Power | 2000 Wp |
| Weight | 18.5 kg |
| Range Name (Solar) | PCU |
| Output Waveform | Sine Wave |
| No. of 12V Batteries in Series | 2 |
| Dimensions | 32.0*27.5*15.0 CM |
