Description

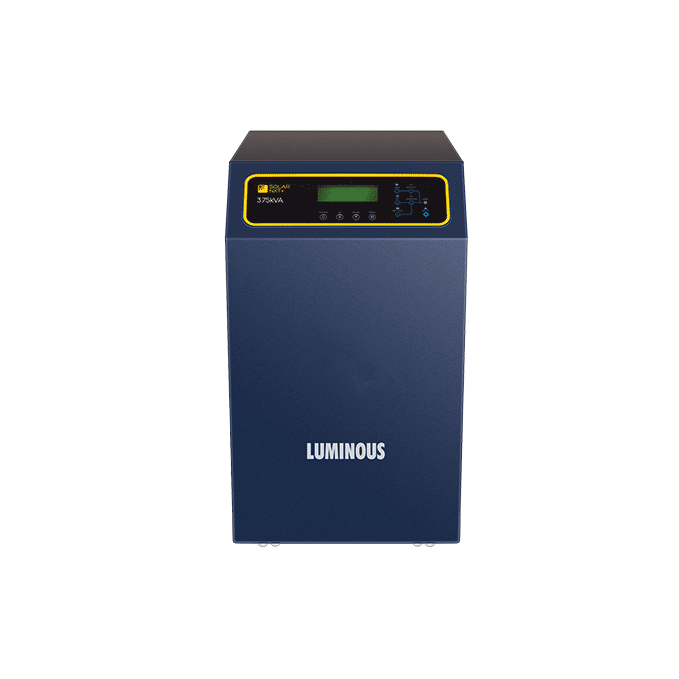

NXT+ range of PCUs is the ideal solution for off-grid applications.
Rated AC power - 230V, 44A, Single phase Max Supported Panel Power - 10000 Wp, Input Voltage Range (Vmp) - 150-240V Charge Controller - MPPT, Input Voltage 180-300 Voc Nominal Battery Bank Voltage - 120V Intelligent system with 32 bit DSP Controller which enables it to handle multiple algorithms efficiently Inbuilt MPPT charge controller extracts upto 30% more power from Panels Inbuilt isolation transformer to protect from grid surges and noise Selectable source priority: Choose source priority from solar, battery and grid User friendly Informative LCD Display for time charging, Supply etc Dual MCB protection against short circuit protection for AC and DC Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge. Pure sine wave output for safety and noiseless operation of connected appliances. Compliance to most of the National & International standards for safety and efficiency and reliability, such as IEC - 61683, IEC - 60068 - 1,2,14,30, IEC - 60529
Product Specification
| Brand | Luminous |
| Model | PCU-NXT+ 12.5 kVA |
| Warranty | 24 Months |
| Country of Origin | Made in India |
| Colour | Blue |
| Range Name (Solar) | PCU |
| VA Rating | 12.5 kVA |
| Output Waveform | Sine Wave |
| Net weight (kg.) | 101 kg |
| No. of 12V Batteries in Series | 10 |
| Dimensions (L*B*H) | 40.0*58.0*74.0 Cm |
| Technology (Solar) | With Battery |
| Maximum Power Voltage Vmp (V) | 250V-450V |
| Nominal Battery Bank Voltage | 120V |
| Input Voltage Range (Voc) | 300V-500V |
