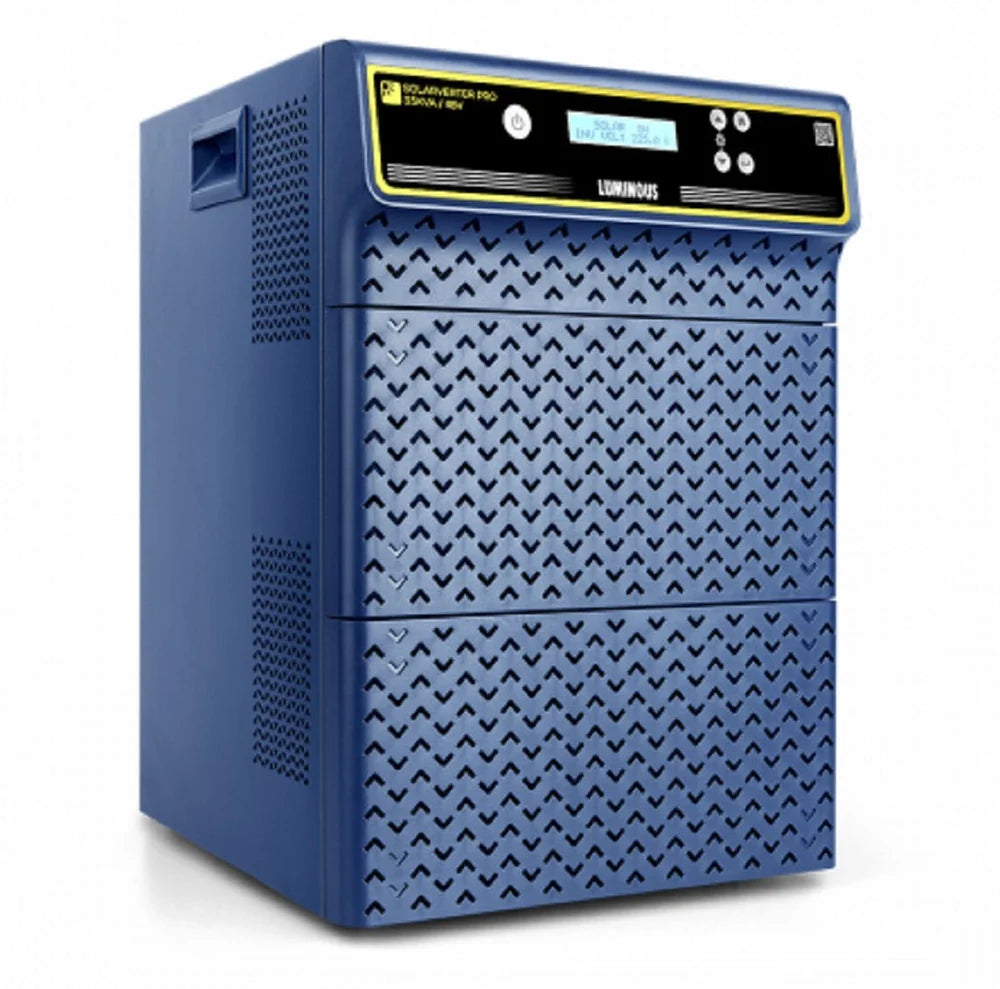

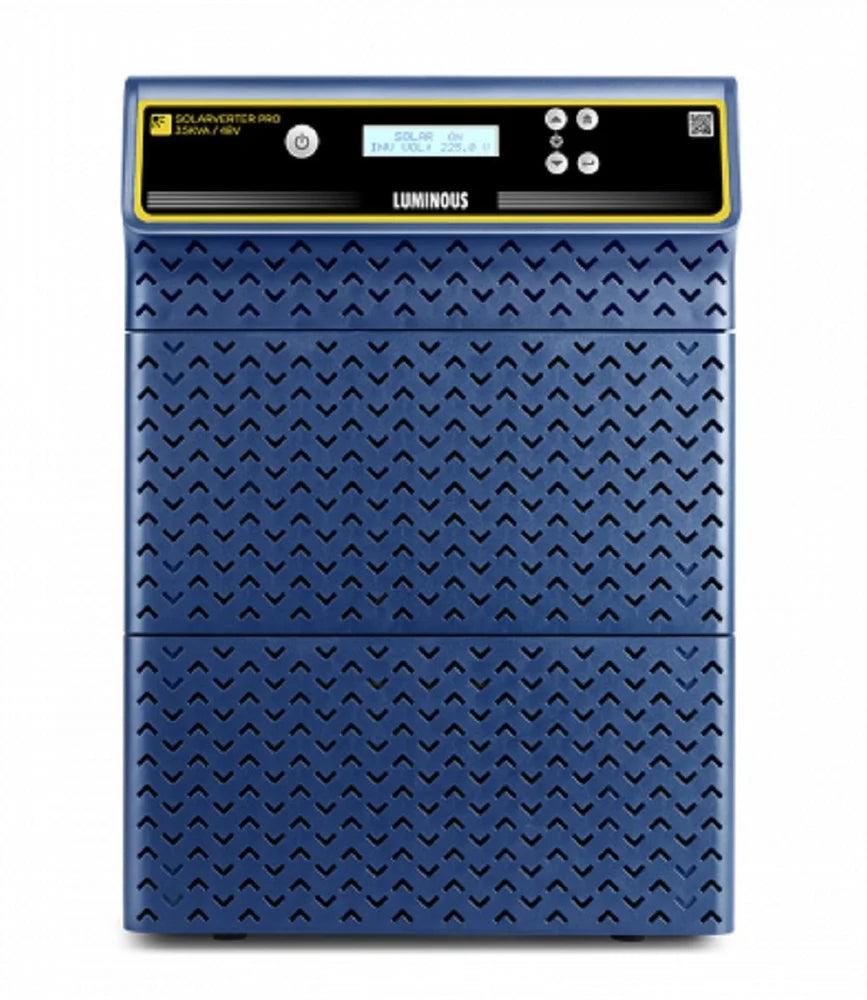

Luminous Solarverter PRO PCU - 3.5KVA / 48V Mppt

Save Rs. 45,000.00

Sale priceRs. 45,000.00 Regular priceRs. 90,000.00


Luminous Solarverter PRO range from Luminous allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. Designed for high performance against the typically tough Indian grid conditions, Solarverter PRO is available from 2 KVA to 10 KVA.

  • Rated AC power - 230V (single phase)
  • Max Supported Panel Power - 3500 Wp, Input Voltage Range (Vmp) – 110V-180V
  • Charge Controller - MPPT, Input Voltage Range (Voc)- 130V-220V
  • Nominal Battery Bank Voltage - 48V
  • BIS certified solar inverter
  • In-built TDR for loads with heavy in-rush current
  • Inbuilt MPPT charge controller to maximize solar generation from solar panels
  • Inbuilt isolation transformer to protect from grid surges and noise
  • User selectable source priority: Choose source priority from solar, battery and grid
  • User friendly Informative LCD Display
  • MCB protection against short circuit protection
  • Pure sine wave output for better performance & safety of connected loads
  • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.

    Technical -

    Brand Luminous
    Model Solarverter PRO PCU
    Capacity 3.5 kVA
    Grid Type 48V DC
    Max Supported Panel Power 3500 Wp
    Weight 47.5 kg
    Range Name (Solar) PCU
    Output Waveform Sine Wave
    No. of 12V Batteries in Series 4
    Dimensions 43.3x52.3x59.0 cm
