Description
Product Details:
| Capacity | 5 KW |
| Max Supported Panel Power | 6500 Kw |
| Brand | Deye Inverters |
| Model | SUN-5K-SG04LP1-EU |
| Input Voltage | 370 (125~500) String Input |
| Warranty | 5 Years |
| Grid Type | Hybrid Inveter |
| Startup Voltage | 125 V |
| Max charging current | 150A |
| PV Input Current (A) | 18+18 |
| Max. Continuous AC Passthrough (A) | 35 |
| No Of MPPT | 2 |
| Max. Charging Current (A) | 90 |
| AC Output Rated Current (A) | 164/15.7 |
| Full Load DC Voltage Range (V) | 250-425 |
| External Temperature Sensor | Yes |
| Max. AC Output Current (A) | 18/17.2 |
| Rated AC Output Active Power (W | 3600 |
| Battery Voltage | 40V to 60 V |
| Phase | single phase |
| No. of Strings per MPP Tracker | 1+1 |
| Battery Type | Lead-acid or Lithium-ion |
| Max. PV (A) | 27-27 |
| MPPT voltage Range | 150V to 425V |
| Output Frequency and Voltage | 50/60Hz: L/N/PE 220/230Vac |
| Start-up Voltage (V) | 125 |
| Rated PV Input Voltage (V) | 370 (125-500) |
| No of MPP Trackers | 2 |
| Max AC Output Active Power (W) | 3960 |
| MPPT Voltage Range (V) | 150-425 |
| Cabinet Size (WxHxD mm) | 330x580x232 (Excluding Connectors and Brackets) |
| DC Current Injection | <0.5% In |
| Weight (kg) | 20.5 |
| Max. Discharging Current (A) | 90 |
| Max. DC Input Power (W) | 4680 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Peak Power (off grid) | 2 time of rated power, 105 |
| Protection Degree | IP65 |
| Charging Curve | 3Stages/Equalization |
| Power Factor Adjustment Range | 0.8 leading to 0.8 tagging |
| Battery Voltage Range (V) | 40-60 |
| Power Factor | 1 |
| Total Harmonics Current Distortion (THDI) | <3% (of nominal power) |

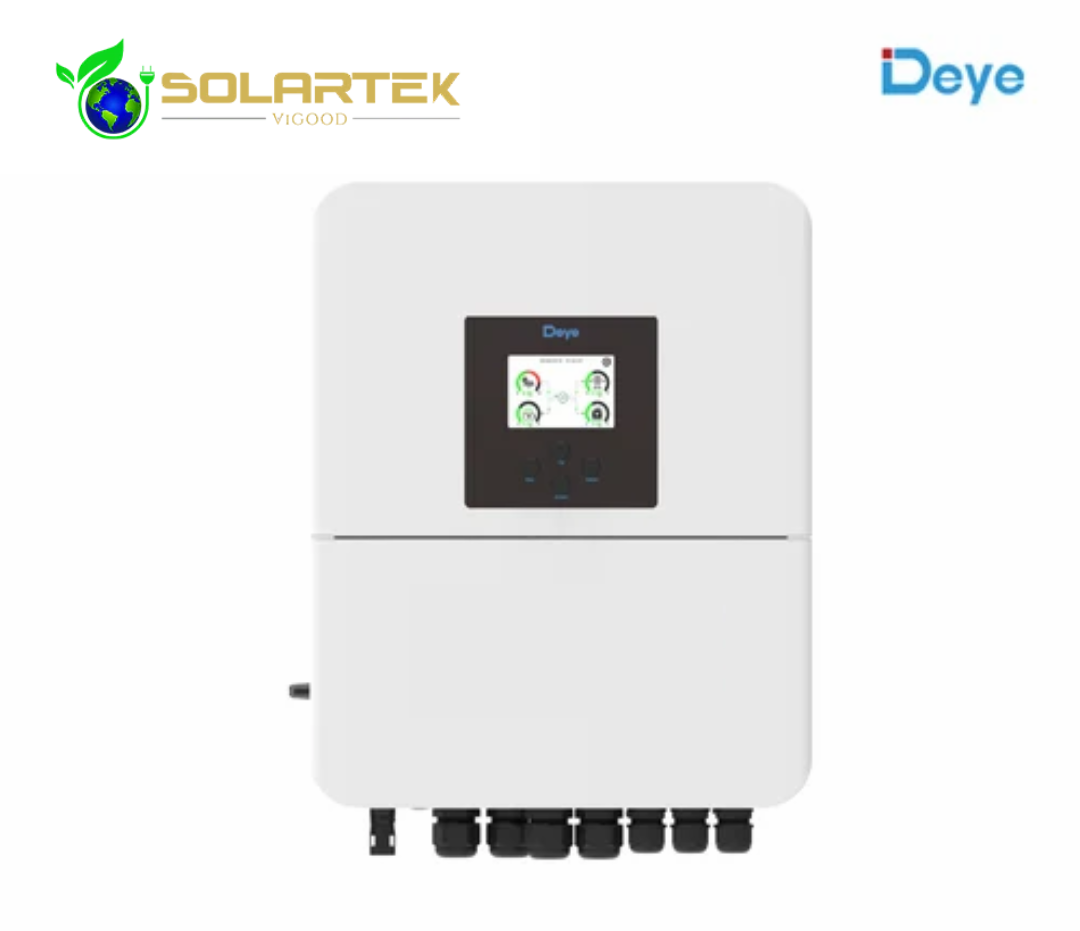

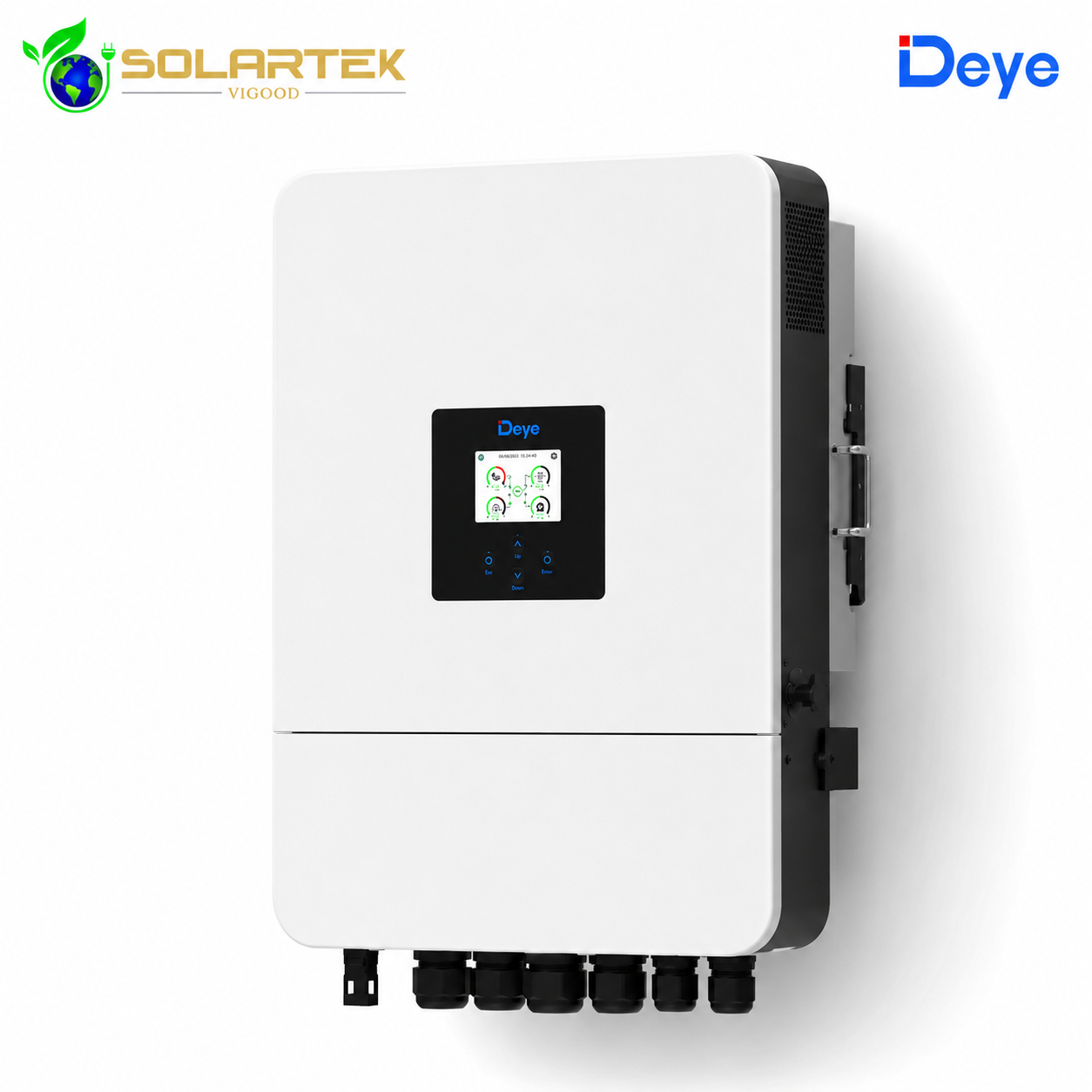

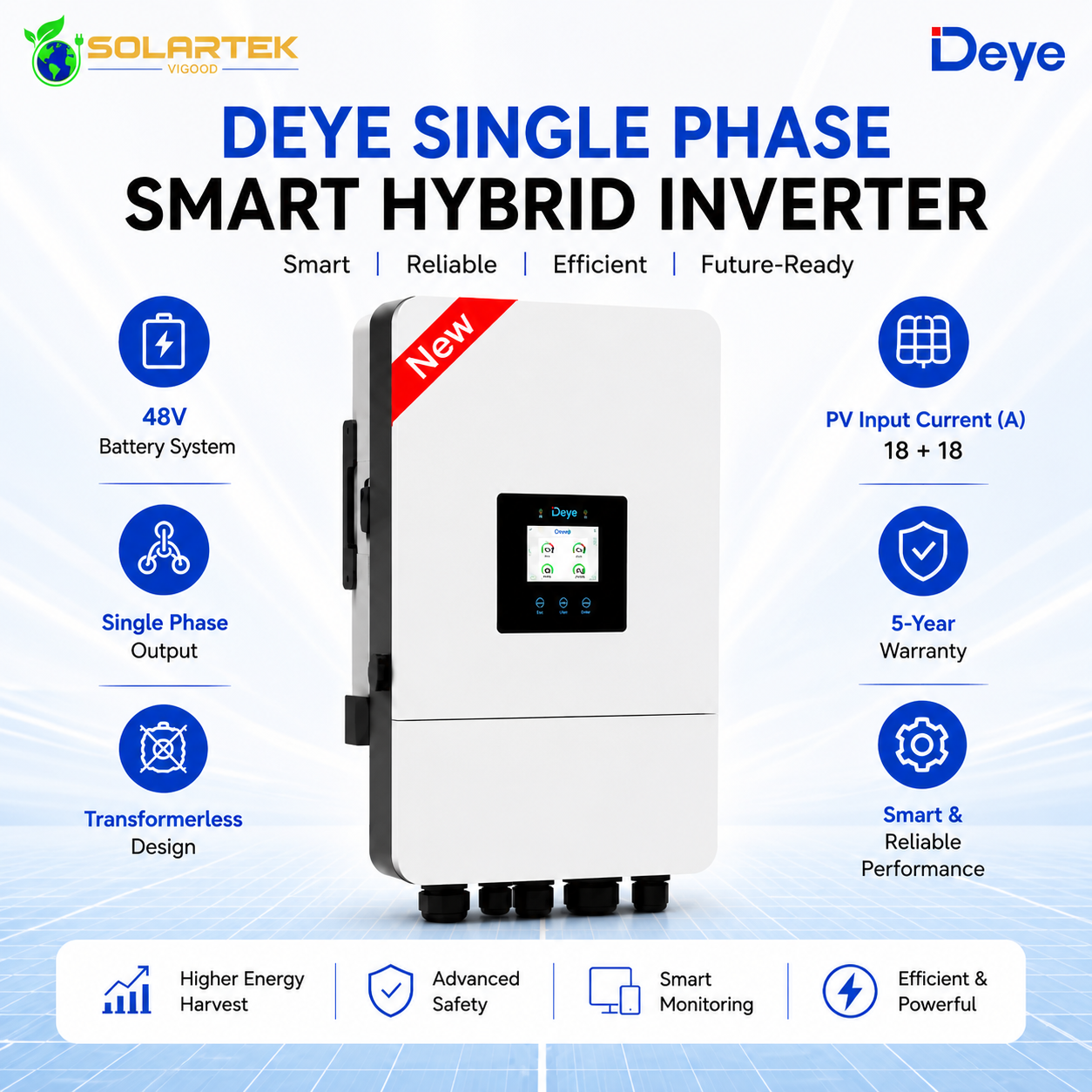

SUN-5K-SG04LP1-EU
Deye Inverters are available with 2 type
On Grid Inverters
Hybrid Solar Inverters
Deye Inverters has unique features called Zero Export Application which is inbuilt into the Inverters. So it will help to start without net metering.
Features
Zero export application, VSG application
Low start-up voltage
Remote change of operating parameters
Remote software upload
String intelligent monitoring (optional)
Ac voltage range can be change up to 300V (1 Phase)
Deye Inverters are very easy to operate because of switches. Also it is a plug and play kind of Inverters so not require any king setting on it..
Starting voltage for Deye Inverters for DC side is 80V for Single Phase
Deye Inverters has 5 Years of Standard warranty.
