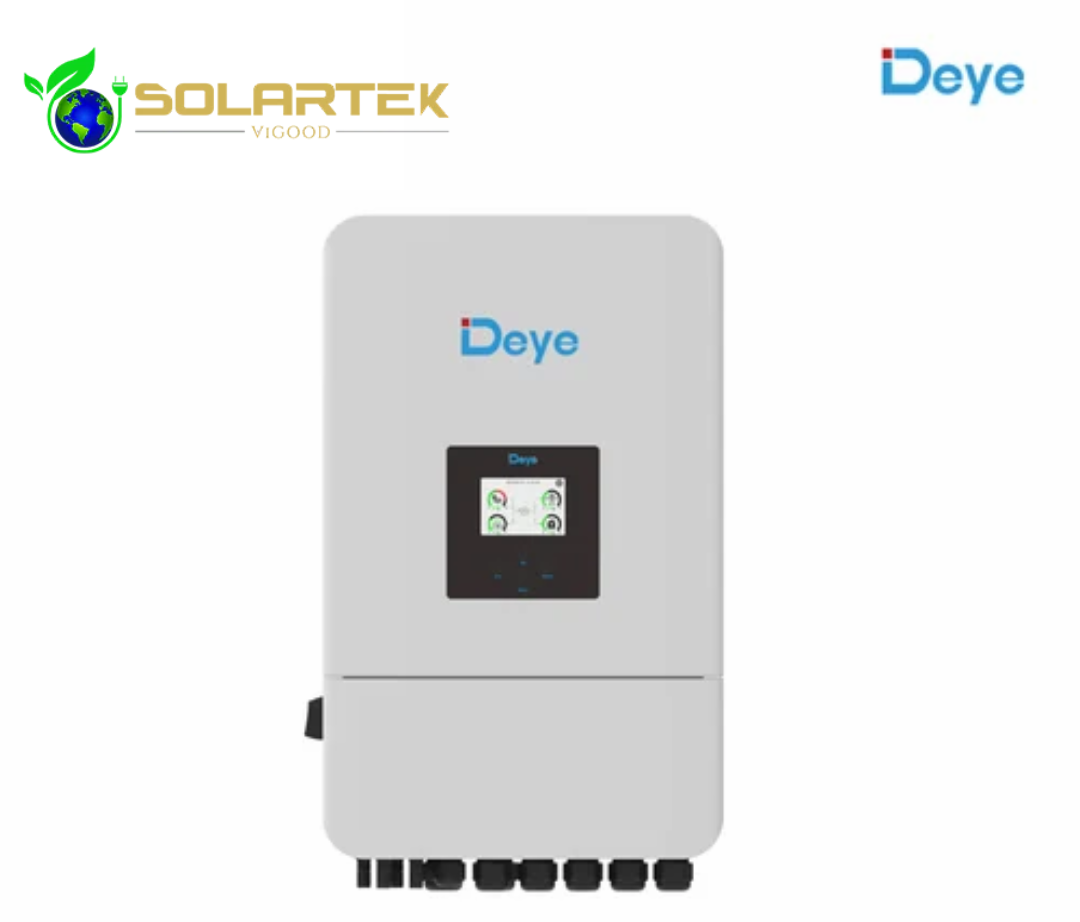

The Deye SUN-8K-SG05LP1 is a premium 8kW Single-Phase Hybrid Solar Inverter designed for high-efficiency residential and small commercial solar systems. Built with advanced dual MPPT technology, bidirectional energy management, and full compatibility with lithium, lead-acid, and high-voltage batteries, this inverter delivers maximum performance, reliability, and long-term energy savings.
With support for zero-export, UPS-level switching (<10ms), and smart monitoring via Wi-Fi / RS485 / CAN, the SUN-8K-SG05LP1 ensures seamless operation even during grid outages. Its robust design, wide PV input range, and high charge-discharge efficiency make it ideal for homes, shops, offices, and solar backup applications.
⭐ Key Features
✔ 8kW high-power hybrid inverter for home & commercial use
✔ Advanced dual MPPT for higher solar generation
✔ Works with lithium & high-voltage batteries
✔ Real-time monitoring via Wi-Fi & Deye online portal
✔ Zero export to grid (optional)
✔ UPS-level switching <10ms — perfect for sensitive appliances
✔ IP65 weatherproof design
✔ Compatible with solar, DG, and grid power
✔ Smart load management for maximum savings
📊
Technical Specifications – Deye SUN-8K-SG05LP1
| Category |
Specification |
| Model |
Deye SUN-8K-SG05LP1 |
| Inverter Type |
Hybrid (Solar + Grid + Battery) |
| Rated Power Output |
8kW (8000W) |
| Phase |
Single Phase |
| PV Input (Solar) |
|
| MPPT Trackers |
2 MPPT |
| MPPT Voltage Range |
125V – 500V |
| Max PV Input Voltage |
500V |
| Max PV Input Power |
10,400W – 11,000W (approx.) |
| Charging Efficiency |
97.6% |
| Battery Compatibility |
|
| Battery Type |
Lithium-ion / Lead Acid / High Voltage Batteries |
| Nominal Battery Voltage |
48V |
| Max Charge/Discharge Current |
190A–200A |
| Supported Battery Communication |
CAN / RS485 |
| AC Output |
|
| Rated Output Power |
8kW |
| AC Voltage |
230V ± 5% |
| Frequency |
50/60 Hz |
| Switching Time |
<10ms (UPS Mode) |
| Max AC Charging Current |
120A |
| Power Factor |
1.0 |
| Protection & Safety |
|
| Anti-Islanding |
Yes |
| Overload Protection |
Yes |
| Surge Protection |
Yes |
| IP Rating |
IP65 (Outdoor Safe) |
| Cooling |
Smart Fan Cooling |
| Monitoring & Control |
|
| Communication Ports |
Wi-Fi / RS485 / CAN / DRM |
| Mobile App |
Deye Cloud Monitoring |
| Zero Export Capability |
Yes (with CT meter) |
| General |
|
| Operating Temperature |
-25°C to +60°C |
| Noise |
<30 dB |
| Warranty |
5 Years Standard |
| Installation Area |
Indoor / Outdoor |
