5 Years Warranty
UTL 12.8V/100AH Lithium-ion Battery for Inverter | ULIBES-12.8V100AH-LP100-WM
UTL 12.8V/100AH Lithium-ion Battery for Inverter | ULIBES-12.8V100AH-LP100-WM
Couldn't load pickup availability

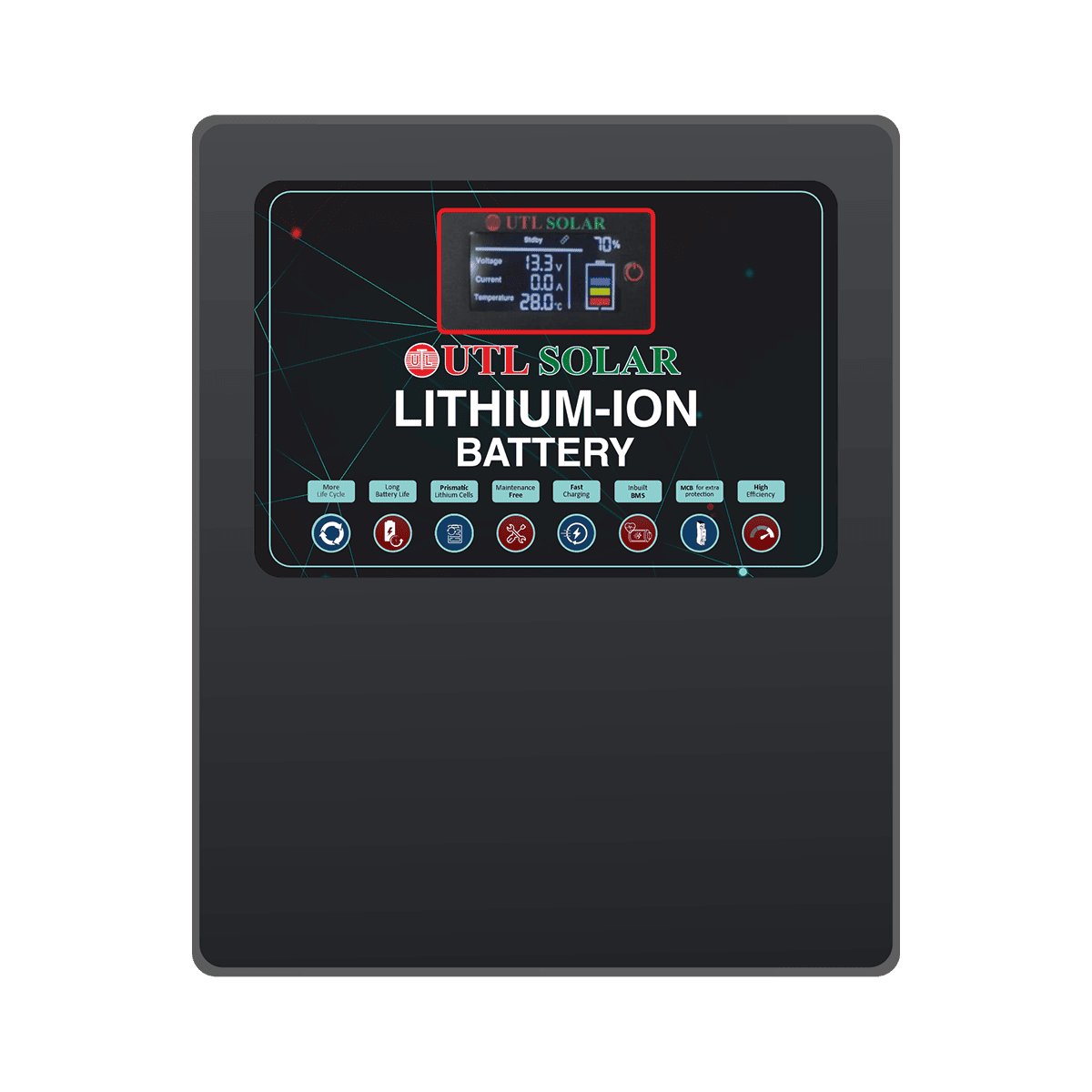

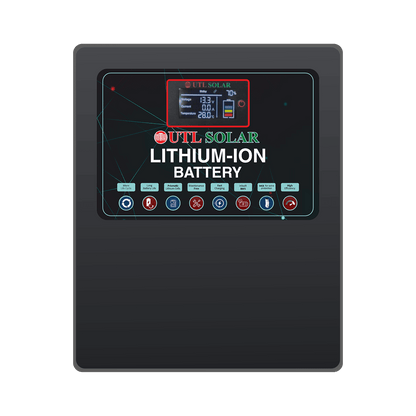

The UTL ULIBES-12.8V100AH-LP100-WM Lithium Battery is a next-generation wall-mountable LiFePO4 battery designed for hassle-free power storage. Unlike traditional lead-acid batteries, it requires zero maintenance – no water top-ups, no acid handling, and no risk of harmful leaks.
Built with advanced prismatic LiFePO4 cells, this battery ensures a long cycle life of 3000–3500 cycles, delivering up to 10 years of reliable performance. Its inbuilt BMS provides complete protection against overcharge, deep discharge, short-circuits, and overheating, making it a safe and dependable energy solution.
The compact wall-mountable design saves space and makes installation easy, while the lightweight construction enhances usability across inverter backup and solar applications. With 98% efficiency and rapid charging capability, the ULIBES-12.8V100AH is the perfect upgrade from conventional lead-acid batteries.
| Rated Capacity | 100 AH |
| Nominal Voltage | 12.8V |
| Cell Type | Prismatic LiFePO4(LPF) |
| BMS | Standard Normal BMS |
| Warranty | 5 Years |
| Battery Life | 10 Years |
| Life Cycle | 3500 |
| Weight | 15 KG |
Key Features
-
- Zero Maintenance – No water topping, no acid refilling, no corrosion.
- Clean & Safe – No acid spills, no toxic fumes, completely eco-friendly.
- Long Life – 3000–3500 cycles, 10 years of reliable service.
- Standard Normal BMS Protection – Safeguards against overcharge, deep discharge & thermal issues.
- Wall-Mountable Design – Space-saving, compact, and modern look.
- High Efficiency – ≥98% efficiency with fast charging and consistent output.
Applications
- Home inverter backup
- Solar off-grid & hybrid systems
- E-rickshaw and light electric vehicles
- Small industrial and UPS applications
Technical Specification
| Specification | Details |
| Max Charging Time | 2Hr @ 50A |
| Max Discharging Time | 2Hr @50A |
| Energy (Wh) | 1280 Wh |
| Continuous Charging Current | 35A |
| Configuration | 4S 1P – 100AH |
| Voltage Range | 21.5V – 22.4V |
| Recommended Charge Voltage | 56.8V – 58.4V |
| Maximum Charge Current | 40A |
| Maximum Discharge Current | 100A (peak), 60A (continuous) |
| Cycle Life | 3000–3500 cycles @ 80% DOD |
| Operating Temperature Range | 0°C to 45°C (charging), -20°C to 60°C (discharging) |
| MCB | Yes |
| Battery Efficiency | ≥ 98% @ 27°C |
| Dimensions (L×W×H) | 310 × 415 × 165 mm |
| Communication Interface | NA |
| Suitable Applications | Energy storage / Inverter application |
