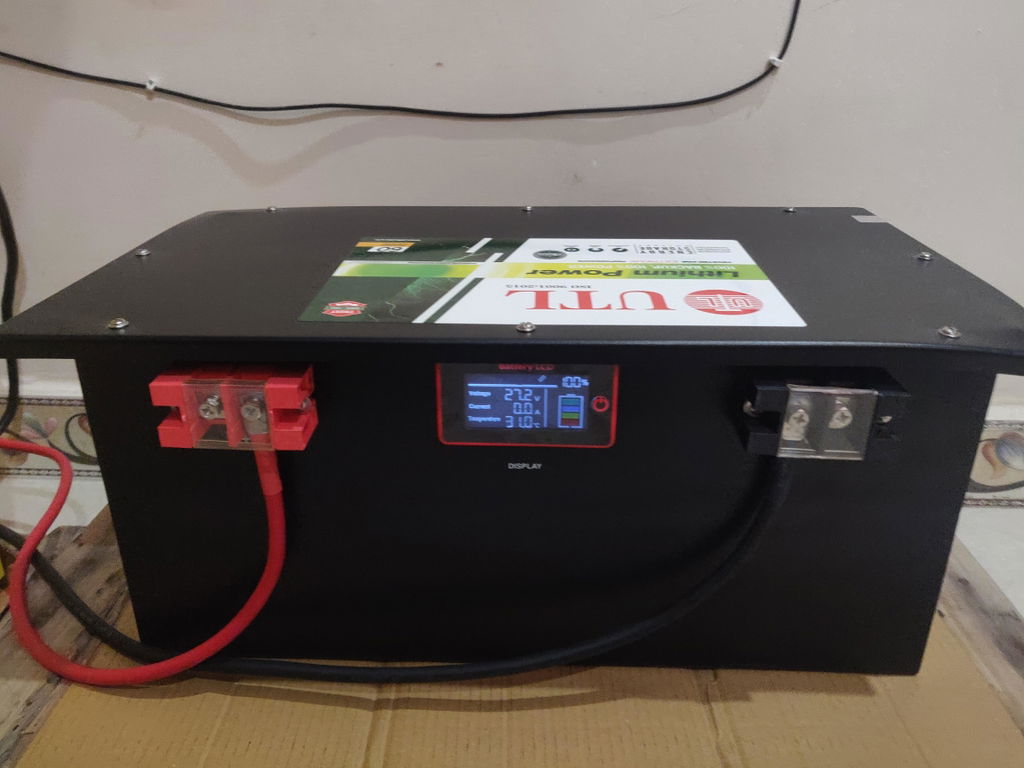

UTL 25.6V/100AH Lithium-ion Battery for Inverter | Fast charging, zero maintenance
UTL 25.6V/100AH Lithium-ion Battery for Inverter | Fast charging, zero maintenance
Couldn't load pickup availability

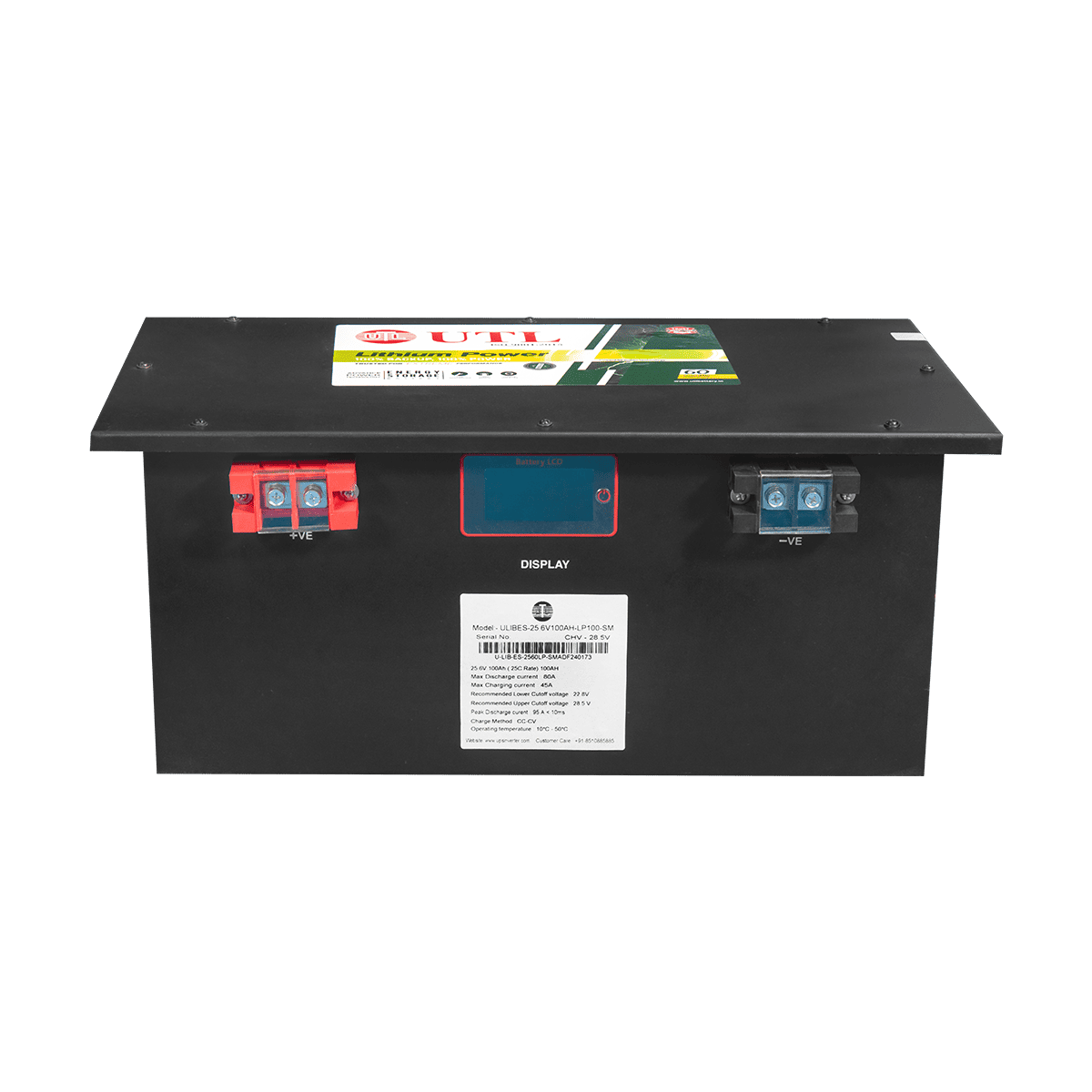

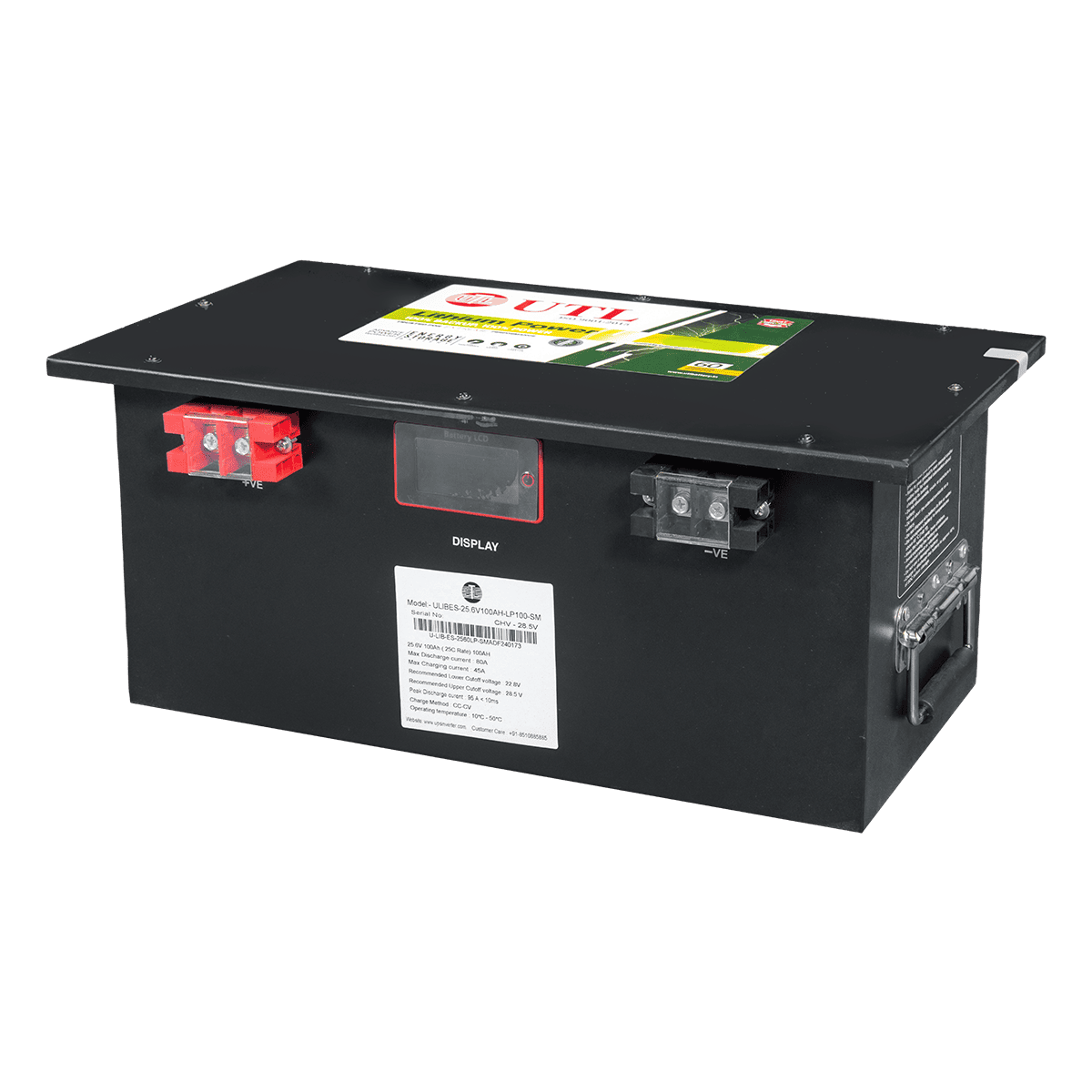

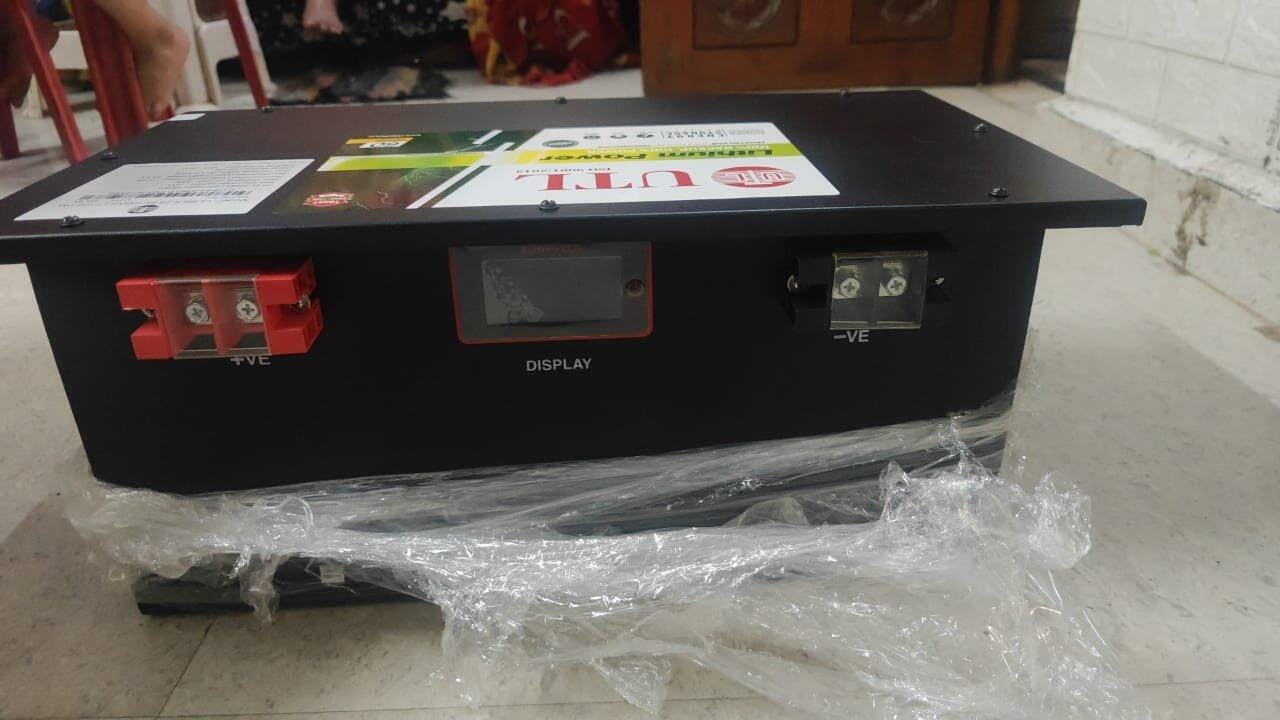

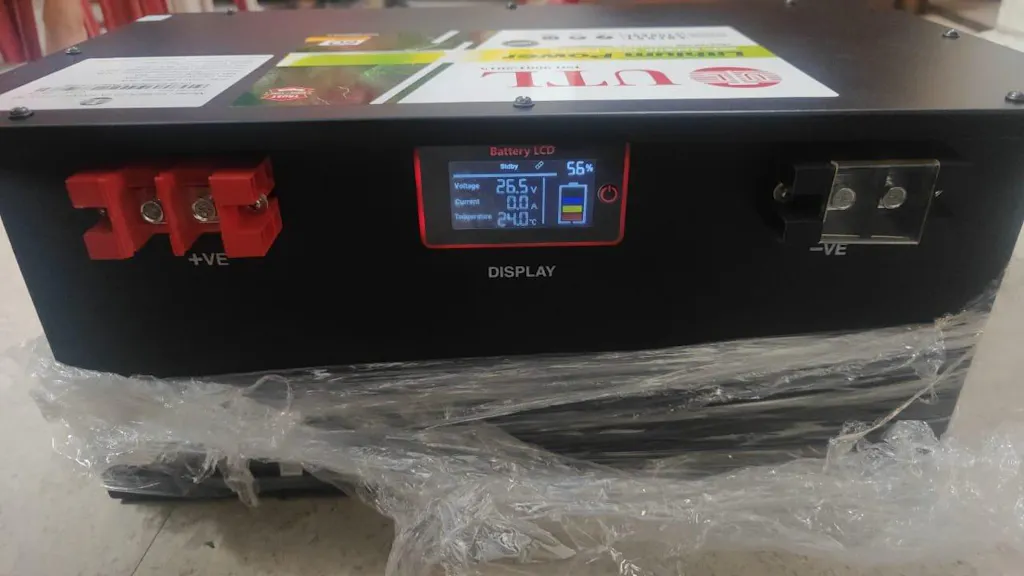

The UTL ULIBES-25.6V100AH-LP100-SM Lithium Battery is a premium LiFePO4 battery designed for solar systems, inverter backup, telecom, mobility, and e-rickshaw applications. With 3500+ life cycles and a 10-year lifespan, it delivers reliable power while ensuring safety with a Smart BMS that protects against overcharging, deep discharge, short-circuits, and thermal issues.
Engineered for fast charging and high efficiency (≥98%), this battery reduces downtime and maximizes energy utilization. Its compact and lightweight design makes it easy to integrate into homes, offices, and industrial setups. Backed by a 5-year warranty, it’s the perfect choice for users seeking durability, safety, and long-term savings.
| Rated Capacity | 100 AH |
| Nominal Voltage | 25.6V |
| Cell Type | Prismatic LiFePO4(LPF) |
| BMS | Standard Normal BMS |
| Warranty | 5 Years |
| Battery Life | 10 Years |
| Life Cycle | 3500 |
| Weight | 38 KG |
Key Features
- IP65/67 compliant
- Reverse polarity
- Temperature cutoff
- Mechanical locking arrangement
- Shock absorption
- Short circuit protection
- Plug & play battery
- Overcharge & discharge Cutoff
- 100% efficient for charge / discharge
Applications
- Home inverter backup
- Solar off-grid & hybrid systems
- E-rickshaw and light electric vehicles
- Small industrial and UPS applications
Technical Specifications
| Specification | Details |
| Max Charging Time | 2Hr @ 50A |
| Max Discharging Time | 2Hr @50A |
| Energy (Wh) | 2560 Wh |
| Continuous Charging Current | 35A |
| Configuration | 8S 1P – 100AH |
| Voltage Range | 21.5V – 22.4V |
| Recommended Charge Voltage | 56.8V – 58.4V |
| Maximum Charge Current | 40A |
| Maximum Discharge Current | 100A (peak), 60A (continuous) |
| Cycle Life | 3000–3500 cycles @ 80% DOD |
| Protection | Smart BMS (Overcharge, Deep Discharge, Short-circuit, Thermal Protection) |
| Operating Temperature Range | 0°C to 45°C (charging), -20°C to 60°C (discharging) |

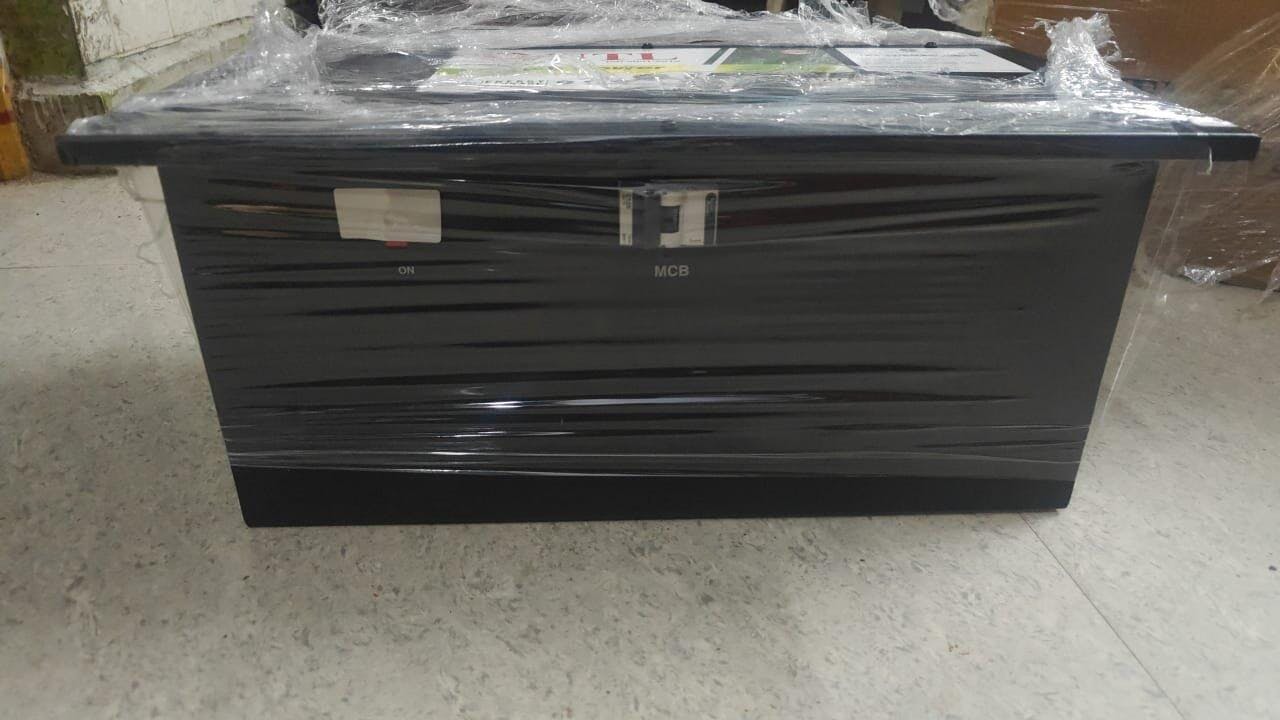

| MCB | Yes |
| Dimensions (L×W×H) | Approx. 521 × 285 × 225 mm |
| Communication (optional) | CAN / RS485 / Bluetooth (on demand) |
| Suitable Applications | Inverter backup, Solar systems, E-rickshaw, Telecom, Mobility |
