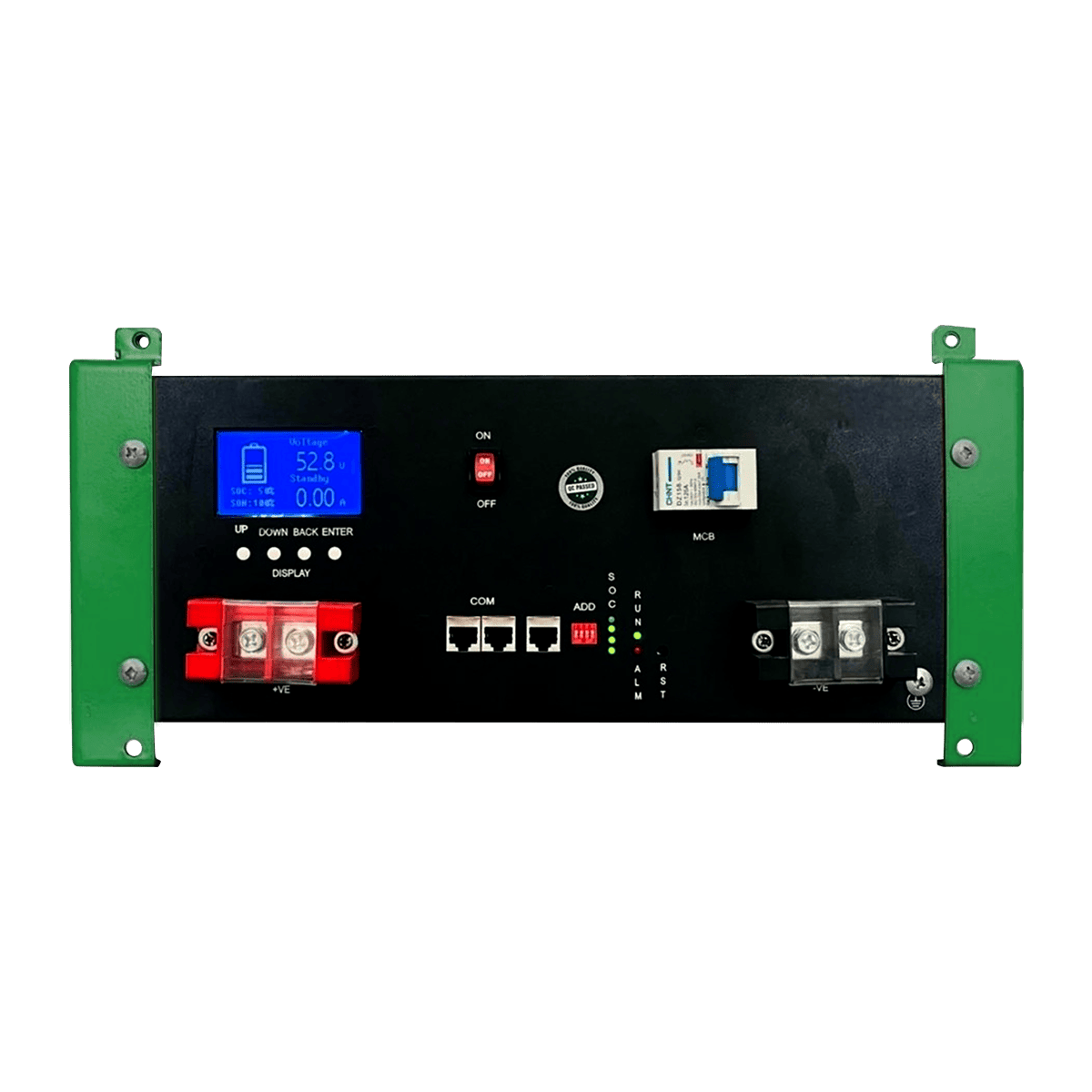

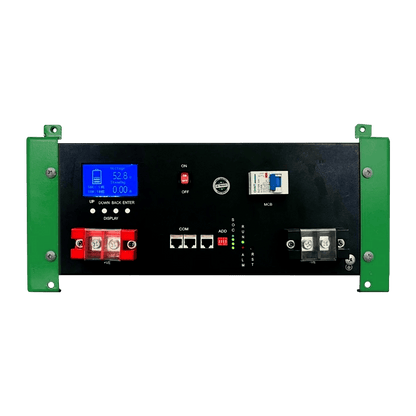

The UTL ULIBES-51.2V100AH-LP100PM is a premium 51.2V LiFePO4 Lithium Battery designed for high-performance solar power systems, hybrid inverters, and energy-storage applications. Known for its superior cycle life, fast charging capability, and unmatched safety, this battery is ideal for homes, offices, commercial setups, and off-grid installations.
Built using advanced Lithium Iron Phosphate (LiFePO4) cells, the ULIBES battery delivers exceptional durability with 3,500 life cycles, long backup time, zero maintenance, and consistent high efficiency. Its smart BMS (Battery Management System) safeguards the battery from overcharging, over-discharging, short circuits, temperature fluctuations, and ensures optimal performance in all conditions.
The battery features a durable outer casing, compact design, and lightweight structure, making installation easy and improving overall system performance. Whether you are upgrading from tubular batteries or building a new solar system, the UTL ULIBES-51.2V100AH-LP100PM is a reliable, powerful, and long-lasting energy solution.
⭐ Key Features
LiFePO4 Chemistry – Safer & longer-lasting than lead-acid batteries
51.2V, 100Ah Capacity – Ideal for 48V solar & hybrid inverter systems
Fast Charging from solar & grid
Ultra-Long Life – 3,500 Life cycles
Smart BMS Protection for safety & performance
High Energy Efficiency with minimal loss
Maintenance-Free Operation
Lightweight & Compact compared to tubular batteries
Ideal for Off-Grid, Hybrid & Backup Systems
📊 Technical Specifications — UTL ULIBES-51.2V100AH-LP100PM
| Specification |
Details |
| Model |
ULIBES-51.2V100AH-LP100PM |
| Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Energy Capacity |
5120Wh (5.12 kWh) |
| Battery Chemistry |
LiFePO4 (Long Life, High Safety) |
| Cycle Life |
3500 cycles (Depth of Discharge dependent) |
| Designed For |
48V Solar PCU / Hybrid Inverters / Energy Storage |
| Charging Method |
CC/CV (MPPT / SMPS / Grid Charger Compatible) |
| Maximum Charging Current |
50A – 100A (Model dependent) |
| Discharge Current |
High discharge capability for heavy loads |
| Built-in BMS |
Yes, Smart BMS with multiple protections |
| Protections |
Over-charge, Over-discharge, Over-current, Short-circuit, Over-temperature |
| Communication Option |
CAN / RS485 (depending on model variant) |
| Recommended Inverters |
48V Hybrid |
| Operating Temperature |
Charge: 0°C to 55°C / Discharge: –20°C to 60°C |
| Storage Temperature |
–10°C to 45°C |
| Body Material |
High-strength metal enclosure |
| Weight |
Lightweight compared to lead-acid (approx. 40–45kg) |
| Mounting |
Floor mount / Cabinet fit |
| Warranty |
Manufacturer Warranty (Typically 5 Years) |
| Applications |
Solar Systems, Power Backup, Hybrid Inverters, Telecom, Energy Storage |
