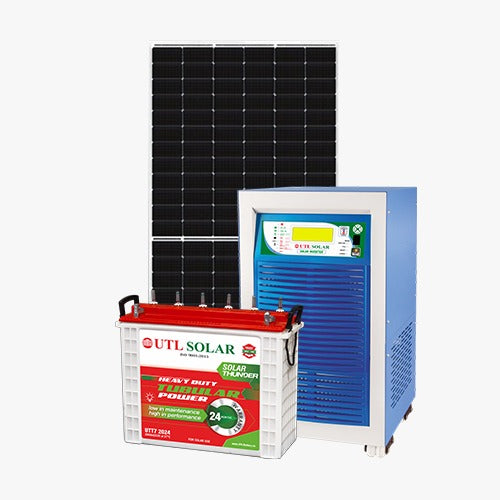

UTL 5kW/48V Hybrid Solar Panel System with 150AH Tubular Battery

Name: UTL 5kW/48V Hybrid Solar Panel System with 150AH Tubular Battery
Brand: 5 Years Warranty
Price: 322950.00 INR
Availability: InStock

UTL 5kW/48V Hybrid Solar Panel System with 150AH Tubular Battery

Rs. 322,950.00

~~Rs. 403,988.00~~ Rs. 322,950.00

Sale Sold out

Quantity

Get Bulk Quotation

Want to save electricity bills, get backup during power cuts, and avail subsidy from the government at the same time? The 5 kW Hybrid solar power generating system (SPGS) is your ultimate all round power solution. It’s a feature-rich, long lasting, and sustainable solar solution that comes with a combination of top quality DCR solar panels, rMPPT solar hybrid inverter, and long lasting solar tubular battery.

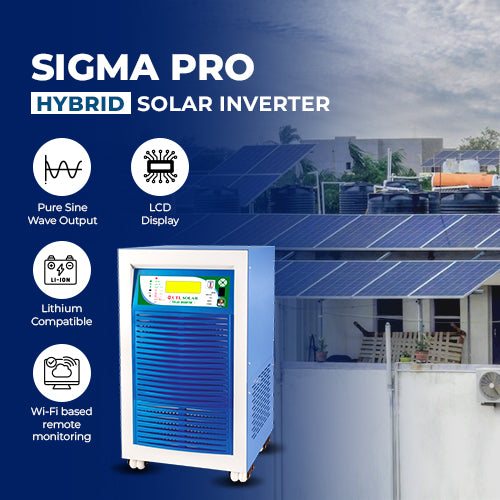

Solar Inverter	Sigma Pro 5kVA/48V rMPPT Hybrid Solar Inverter
Inverter Model	UGE5048
Inverter warranty	5 years
Solar Panel	540W MonoDCR Bi-facial Dual Glass X 10 Nos.
Solar Panel Performance Warranty	27 years
Solar Panel Product Warranty	10 years

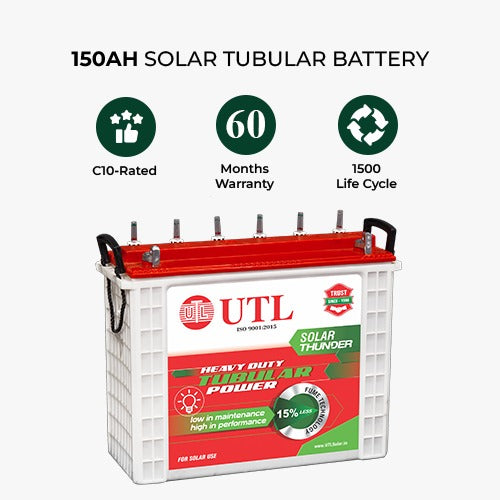

Battery	150AH UST 1560 Solar Battery x 4 Nos.
Battery Warranty	60 Months*
Daily Unit Generation	20-25 Units Per Day
Space Required	270 Sq. Ft. – 315 Sq. Ft.
Installation Materials	ACDB & DCDB Box Lightning Arrester Earthing Materials HDPE Conduit MC4 Connectors

Solar Kit Items

Item No	Description of Items	Specification
1	SOLAR PV MODULE	540W MonoDCR Bi-facial Dual Glass X 10 Nos.
2	UTL HYBRID INVERTER	Sigma Pro 5kVA/48V rMPPT Hybrid Solar Inverter
3	DCDB 1 IN 1OUT WITH SPD & FUSE	IP65 BOX, 20A DC Fuse for each string & (DC SPD II) 600V
4	ACDB 3 KW	2 Pole 25 Amp MCB + AC SPD Type 2 + IP 65 Polycarbonate Enclosure
5	DC CABLE (Red & Black)	1CX4 SQmm Cu. Flexible DC Cable
6	Inverter to ACDB (AC CABLE)	2C*4 SQmm Cu. Flexible Cable
7	ACDB to LT PANEL (AC CABLE)	2C*4 SQmm Cu. xlpe armoured cable
8	EARTHING ROD	GI earthing rod 2 mtr Length (50MM DIA) / Copper earthing rod 2 mtr Length rod (14MM DIA)
9	EARTHING CHEMICAL BAG	25 kg earthing chemical bag
10	EARTHING CHAMBER	300MM DIA
11	Earthing Cable for LA	1C x 10 SQmm – Cu. Flexible Cable
12	Earthing Cable for DC & AC	1C x 6 SQmm – Cu. Flexible Cable
13	Ring Type Thimble	6SQMM
14	Ring Type Thimble	10SQMM
15	PIN Type Thimble	4 SQMM
16	PIN Type Thimble	6 SQMM
17	SS304 Nut bolt with Washer	M8x30mm
18	HDPE Conduit (25 mm)	UV protected (25mm)
19	Elbow (25 mm)	UV protected (25mm)
20	T Bend (25 mm)	UV protected (25mm)
21	I bend (25 mm)	UV protected (25mm)
22	PU FOAM	PU foam bottle 750ml
23	Saddle	UV protected
24	Gitti	UV protected
25	Ferrul	Tube type ferrul
26	Screw	UV protected
27	Cable Tie – 300	UV protected nylon Cable Tie
28	Danger Sign (AC+DC)	UV protector (UTL)
29	MC4 Connectors with pin	Solar Connector MC4 DC 1000V 30A IP67 Male-Female
30	Electrical Tape R,B,B,G	red-1, blue-1, black-1, green-1
31	LA with HDG Stand	copper Bonded LA with 2 Mtr stand
32	Flexible Pipe	PVC Flexible Pipe 25mm

Warranty

Inverter: 5 years Onsite Warranty
Solar Panel:27 Years Performance Warranty
Battery: 60 Months*

Subsidy Details

Under the PM Surya Ghar Muft Bijli Yojna, residential Hybrid Solar Systems are eligible for a subsidy of up to ₹78,000.

Subsidy Structure
● 1kW – 2kW Hybrid Solar System → ₹30,000
● 3kW – 10kW Hybrid Solar System → ₹78,000
Terms & Conditions:
● Subsidy applicable for residential installations only.
● Maximum subsidy available up to 10kW.
● DCR (Domestic Content Requirement) solar panels must be used.
