The UTL Sigma Pro 2KVA / 48V Hybrid MPPT Solar PCU is a versatile, high-efficiency solar power conditioning unit built for smart hybrid operation. It combines solar energy harvesting, battery storage, and grid power to deliver reliable, clean, and continuous power for homes, small offices, and remote installations.

Key to its design is the in-built r-MPPT charge controller, which is up to 30% more efficient than traditional PWM controllers. This ensures you extract maximum energy from your solar panels, even in sub-optimal light. The PCU is controlled by a DSP-based architecture, offering a pure sine-wave output that is safe for sensitive devices like laptops, LED TVs, CCTV systems, and more.

You can choose between multiple working modes — Smart, PCU, Hybrid, or Grid-Export — depending on your load and energy priorities. In Smart mode, it intelligently balances solar, battery, and grid to save on electricity bills. In PCU mode, it gives top priority to solar and battery. Hybrid mode lets it use all three sources efficiently, while Grid-Export lets you feed excess power back to the grid or sync with grid supply.

⭐ Key Features (Bullet Points)

🔋 HIGH-EFFICIENCY r-MPPT SOLAR TECHNOLOGY

Advanced r-MPPT charge controller extracts up to 30% more power from solar panels than PWM, ensuring faster charging and maximum energy savings even during low-light conditions.

⚡ INTELLIGENT HYBRID OPERATION (4 WORKING MODES)

Operate in Smart / PCU / Hybrid / Export mode for total flexibility. Automatically manages solar + battery + grid to reduce electricity bills and ensure 24×7 power availability.

🔌 PURE SINE WAVE OUTPUT – SAFE FOR SENSITIVE DEVICES

Delivers stable and noise-free pure sine wave power, making it ideal for laptops, LED TVs, routers, CCTV, refrigerators, medical equipment, and other sensitive electronics.

📊 LARGE LCD DISPLAY WITH ADVANCED MONITORING

20×4 LCD screen shows solar power, battery voltage, AC load, grid status, charging current, faults, and more—helping you easily monitor and optimize energy usage.

🛡️ BUILT-IN MULTI-LAYER PROTECTION & IEC SAFETY CERTIFICATION

Features overload, reverse polarity, short-circuit, over-temperature & solar input protection. Certified with IEC 61683 / 61727 standards for global-grade safety and performance.

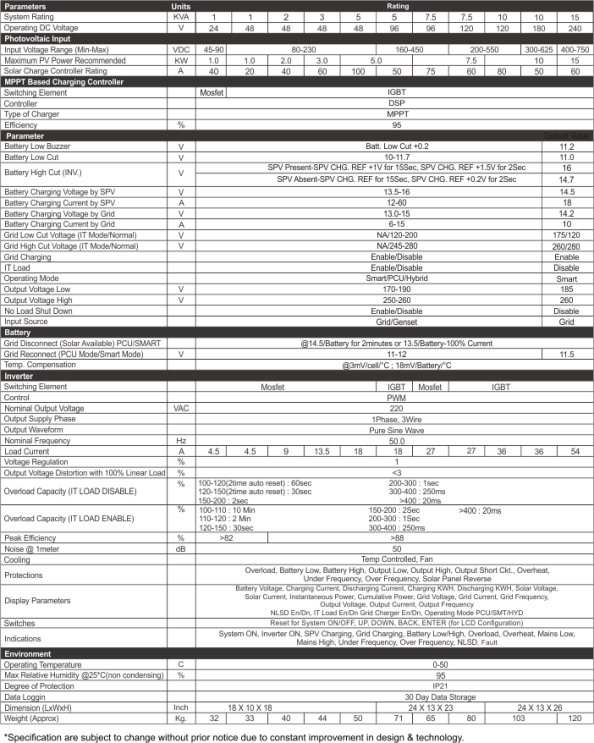

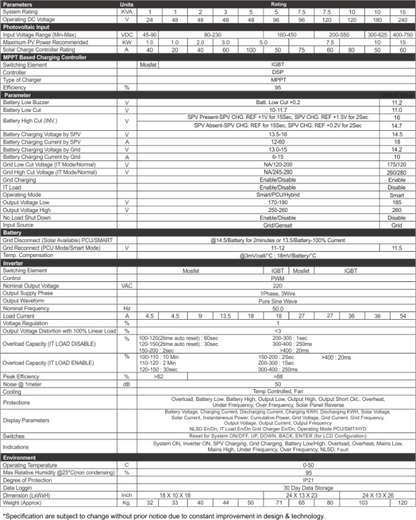

Technical Specifications

UTL Sigma Pro Solar PCU
