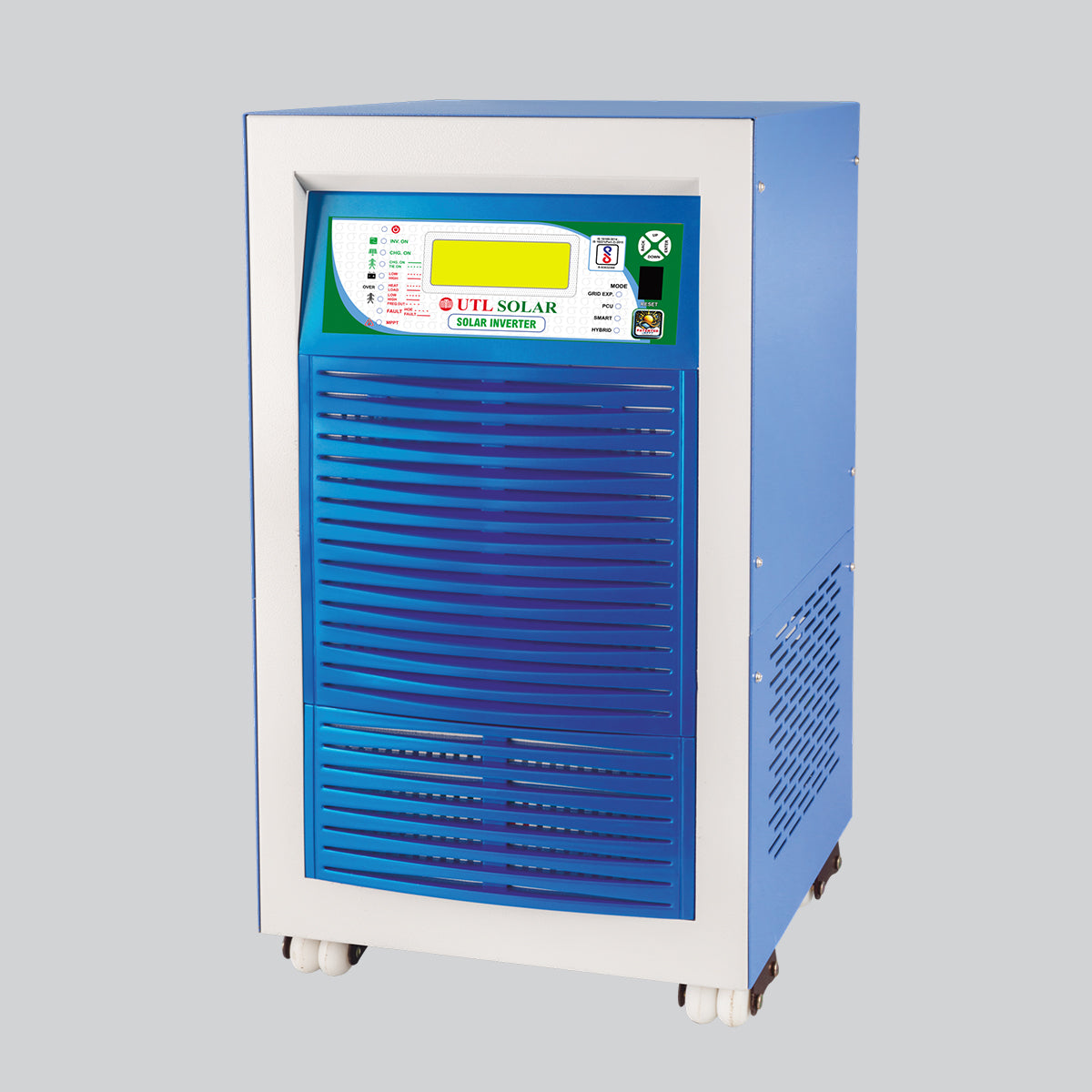

The UTL SigmaPro Hybrid PCU 3KVA / 24V is a high-performance Hybrid MPPT Solar Power Conditioning Unit designed for homes, shops, and offices requiring efficient solar utilization with reliable backup. Equipped with advanced r-MPPT solar charging technology, it extracts maximum power from solar panels even in low-light conditions, ensuring faster charging and higher energy savings.
This smart hybrid system automatically manages solar, battery, and grid power, offering seamless, uninterrupted electricity supply. Its pure sine wave output ensures safe operation of sensitive electronics like TVs, laptops, routers, computers, refrigerators, and medical equipment.
This hybrid PCU seamlessly manages solar energy, battery power, and grid supply to ensure 24/7 uninterrupted power. It offers four working modes — Smart, PCU, Hybrid, and Grid-Export — giving users complete control over energy usage and electricity bill savings. The pure sine wave output ensures safe, stable, and noise-free operation of sensitive electronics like computers, LED TVs, CCTV, servers, and medical equipment.
⭐ Features
Advanced r-MPPT solar technology for maximum power extraction
Smart hybrid operation: Solar + Battery + Grid
Pure sine wave output safe for sensitive appliances
Large 20×4 LCD for real-time monitoring
Supports up to 3 KW solar panels
Durable design with multi-level electronic protections
Ideal for homes, shops, and small business power needs
⭐ Technical Specifications
UTL SigmaPro Hybrid PCU – 3KVA / 24V Model
Category
Specification
Model
UTL SigmaPro UGE3024
Rated Capacity
3KVA / 3000W
System Voltage
24V DC (2 × 12V batteries)
Battery Types Supported
Lithium ,Tubular, VRLA, GEL, SMF
Solar Charging Technology
Hybrid MPPT (r-MPPT)
Recommended Solar Panel Capacity
2500W – 3000W
Max PV Input Voltage (Voc)
70V – 160V
Solar Charging Current
Up to 50A
AC Output Waveform
Pure Sine Wave
Output Voltage
220V ± 1%
Grid Charging Current
Selectable (High/Low)
Efficiency
> 95%
User Modes
Smart Mode, Hybrid Mode, PCU Mode, Grid Priority
Display
20 × 4 LCD screen
Protections
Overload, Short Circuit, Battery Overcharge, Over-Temperature, Reverse Polarity, Solar High Voltage
Cooling
Smart Fan Control
Body Material
Heavy-Duty Metal Cabinet
Ideal Applications
Homes, Shops, Clinics, Small Offices, Rural Power Backup
