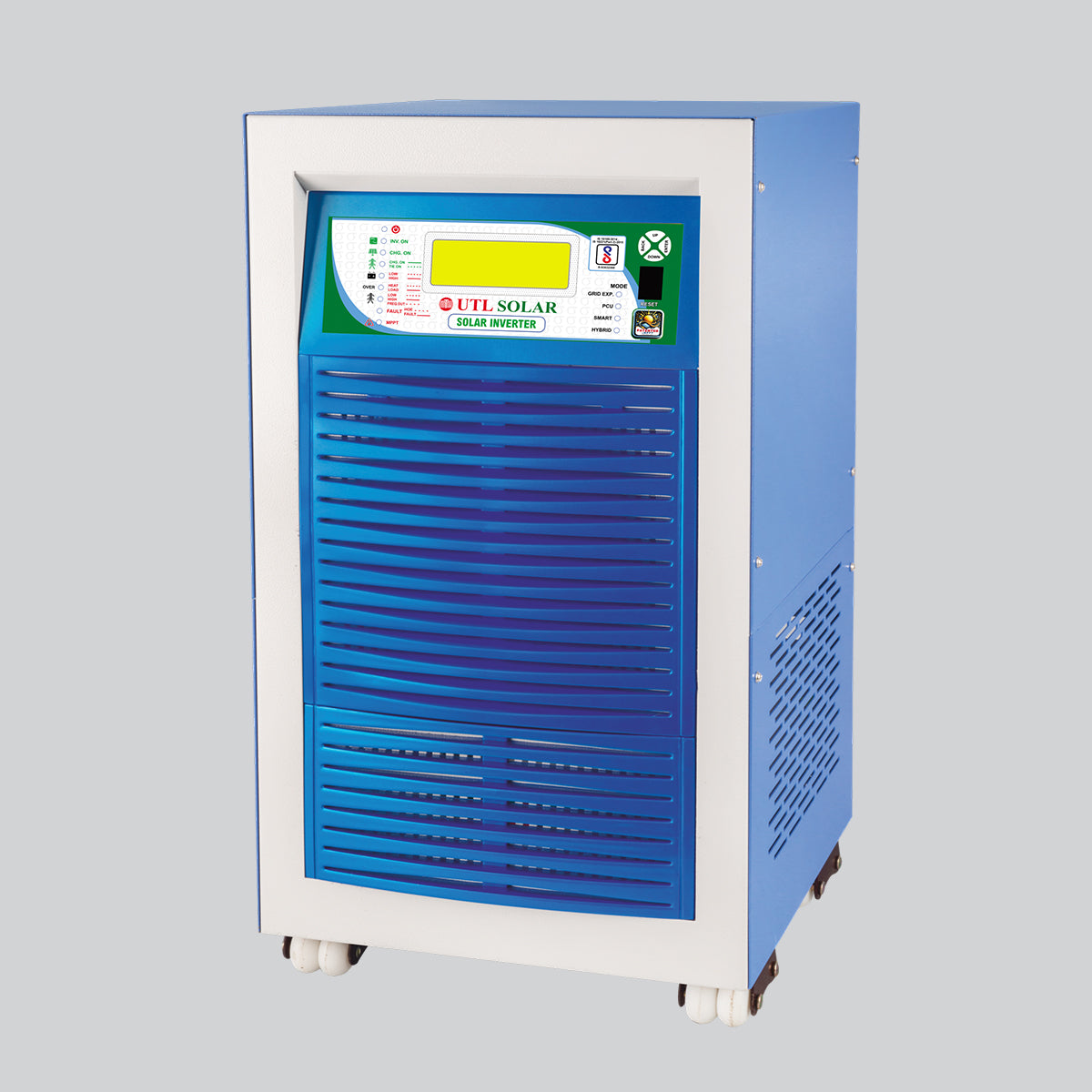

The UTL SigmaPro Hybrid PCU 5KVA / 48V is a powerful and intelligent Hybrid MPPT Solar Power Conditioning Unit designed for medium to heavy solar power requirements. Equipped with advanced r-MPPT (Rapid Maximum Power Point Tracking) technology, it delivers superior solar charging efficiency—even in cloudy or low-sunlight conditions—extracting up to 30% more power from solar panels compared to traditional PWM systems.
This 5KVA Hybrid PCU seamlessly integrates solar energy, battery power, and grid supply to provide uninterrupted electricity with maximum savings. With its pure sine wave output, it ensures safe operation of sensitive equipment such as computers, LED TVs, medical devices, refrigerators, printers, and more.
Perfect for homes, shops, small businesses, schools, clinics, and rural setups, this PCU supports high-capacity loads while ensuring long backup and optimal solar utilization.
⭐ Key Highlights
High-efficiency r-MPPT Solar Charger for maximum solar power extraction
Pure Sine Wave Output safe for all electronic appliances
Smart Hybrid Operation—automatic management of Solar + Battery + Grid
Supports up to 5kW PV array for heavy solar usage
Real-time LCD monitoring of all system parameters
Engineered for long backup, high loads, and Indian power conditions
Multiple protective features ensure long system life
⭐ Technical Specifications
UTL SigmaPro Hybrid PCU – 5KVA / 48V
| Category |
Specification |
| Model |
UGE5048 SigmaPro |
| Rated Capacity |
5KVA / 5000W |
| System Voltage |
48V DC (4 × 12V Batteries) |
| Battery Types |
Lithium ,Tubular, VRLA, GEL, SMF |
| Solar Charging Technology |
Hybrid MPPT (r-MPPT) |
| Recommended Solar Capacity |
5000W – 5500W |
| Max PV Input Voltage (Voc) |
120V – 200V |
| Solar Charging Current |
Up to 85A (Model Dependent) |
| AC Output Waveform |
Pure Sine Wave |
| Output Voltage |
220V ± 1% |
| Working Modes |
Smart Mode, Hybrid Mode, PCU Mode, Grid Priority Mode |
| Energy Efficiency |
> 95% |
| Display |
20×4 LCD (Solar, Battery, Load, Grid Status) |
| Charging from Grid |
Selectable (Low/High Current) |
| Protections |
Overload, Over-Temperature, Short Circuit, Battery Deep Discharge, Reverse Polarity, Solar High Voltage |
| Cooling System |
Intelligent Temperature-Controlled Fan |
| Body Material |
Heavy-Duty Powder-Coated Metal |
| Suitable For |
Homes, Shops, Offices, Clinics, Schools, Small Industries |
