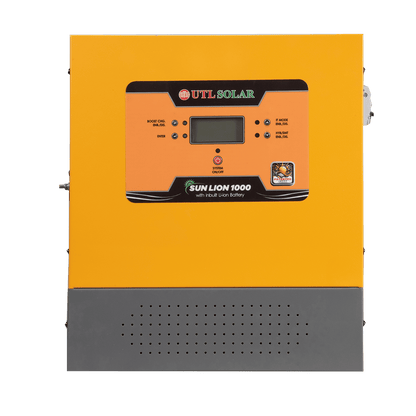

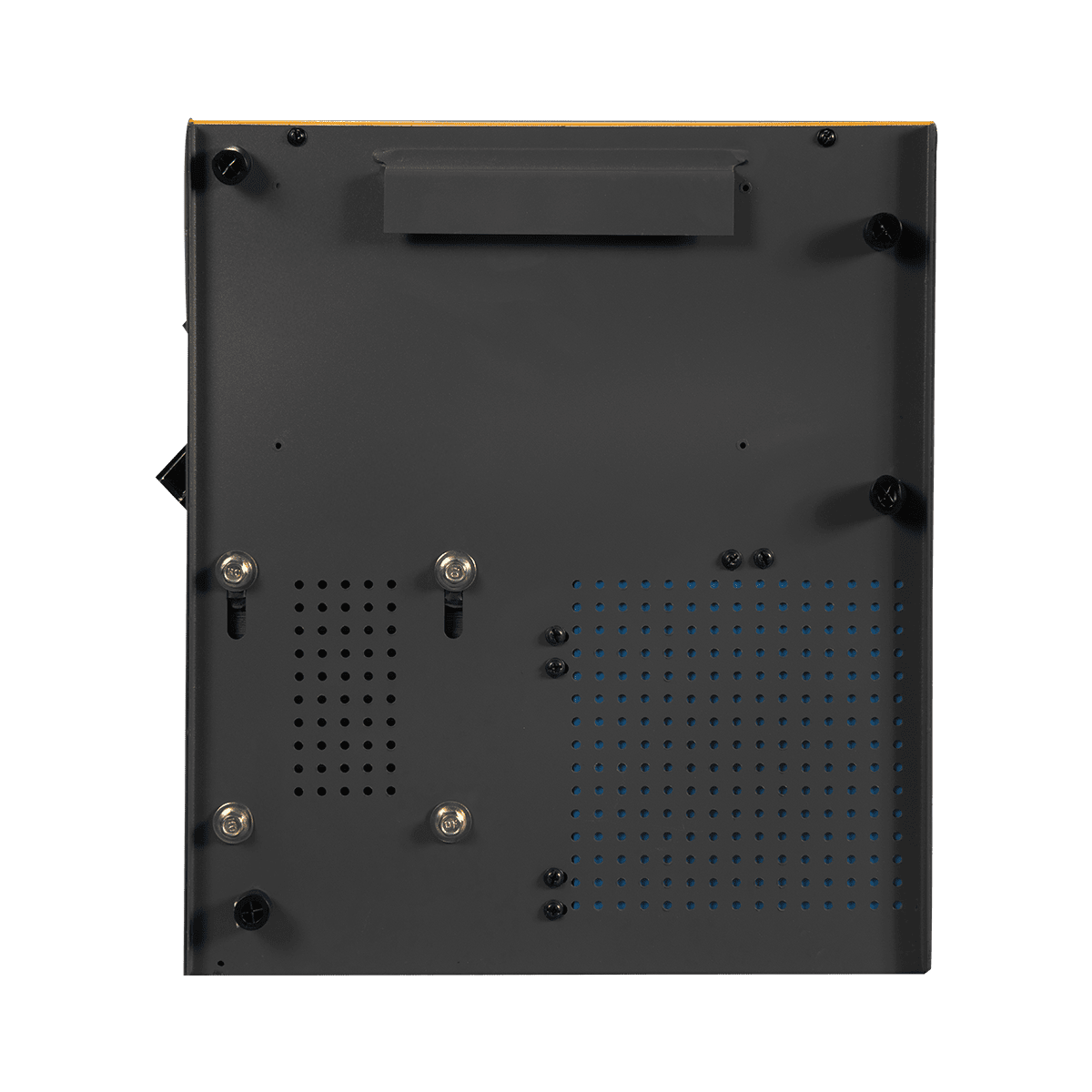

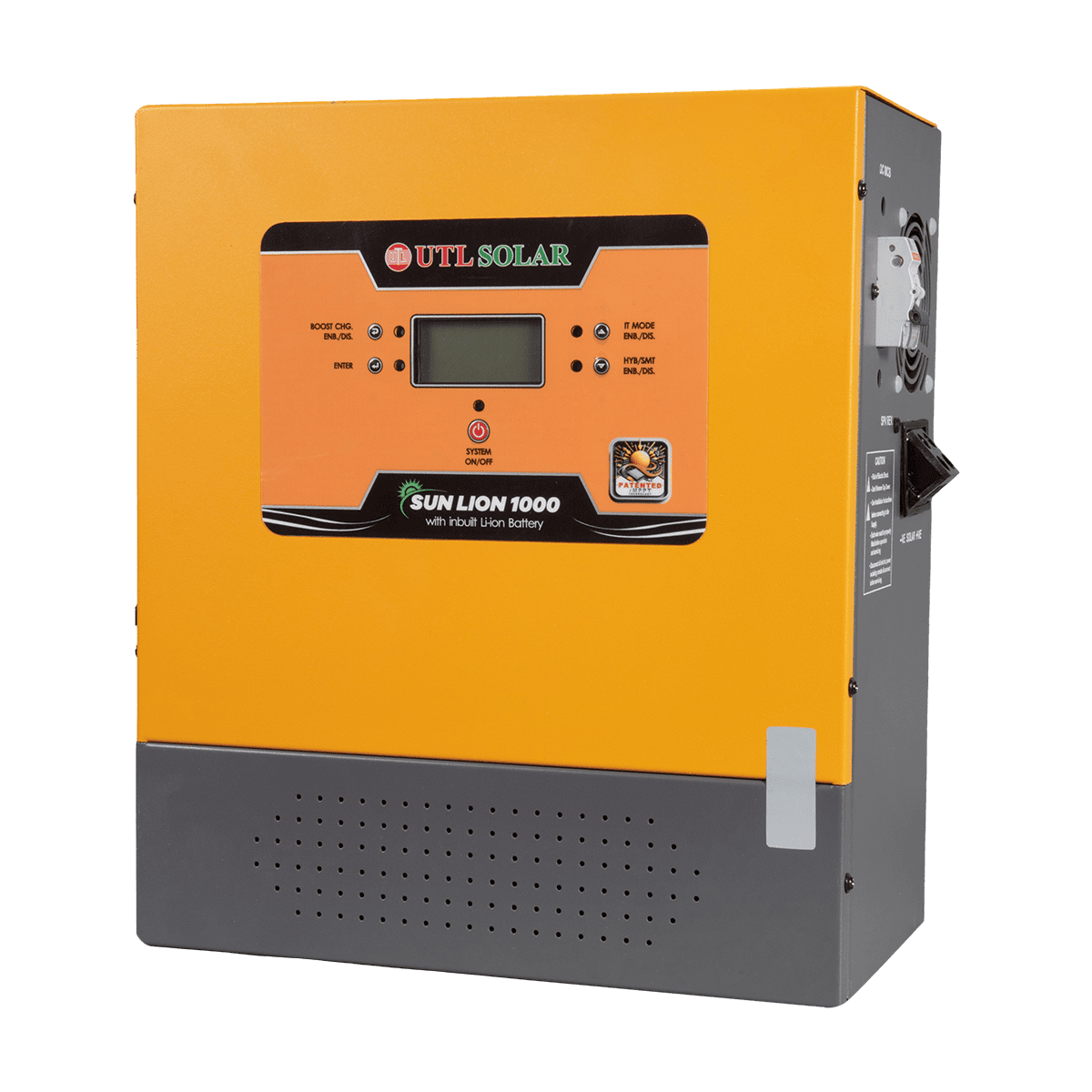

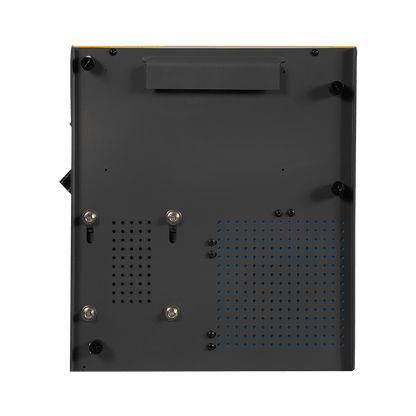

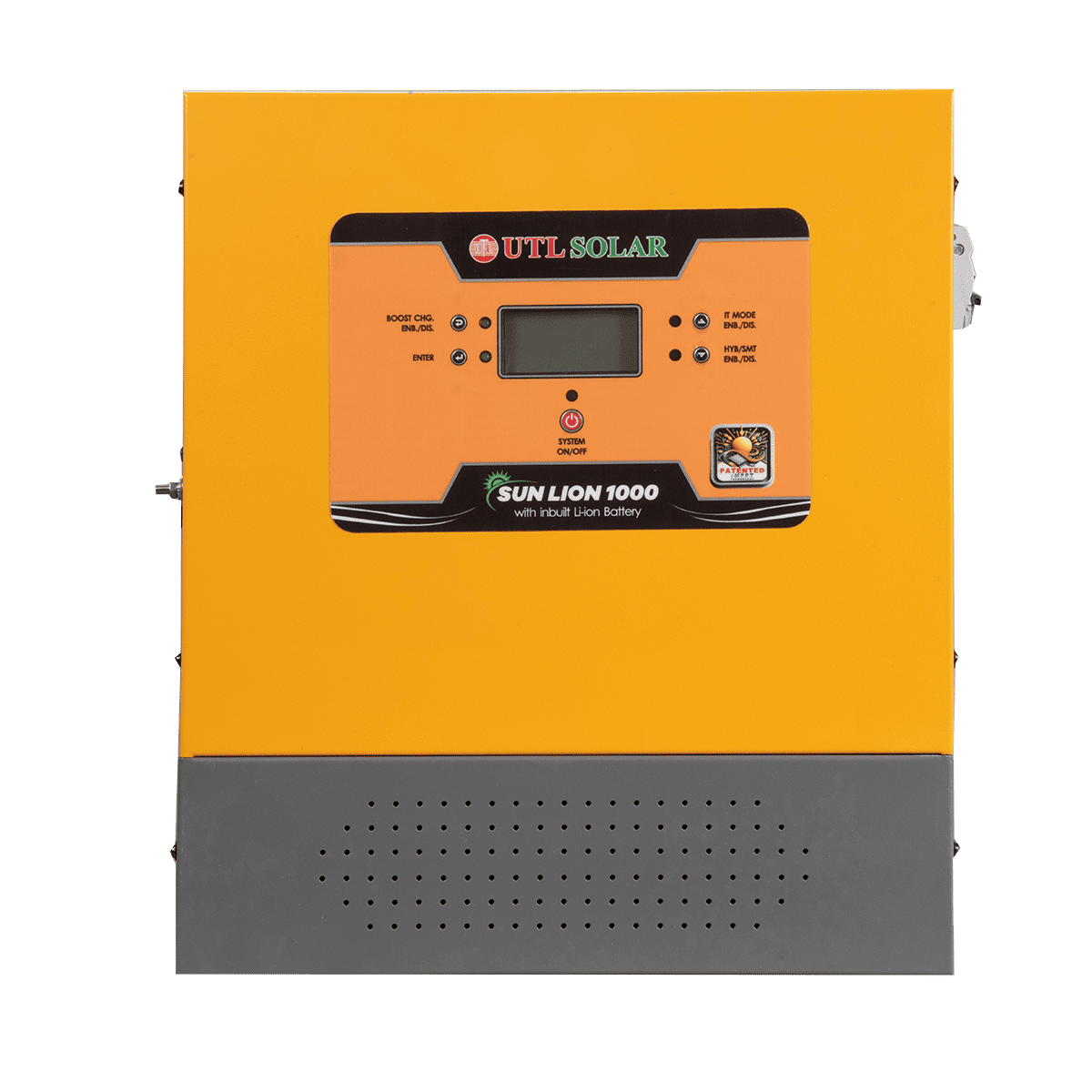

Looking for a solar inverter with battery backup and long life? Sun Li-ON 1000 might just be the perfect fit for your needs. You can get started with a single 340W Solar Panel or 540W solar panel and connect the lithium integrated inverter to enjoy reliable back up and more savings. This mini inverter is compact, wall mountable and zero maintenance along with longer battery lifecycle . Sun LiON is a 12V system with 50Ah in-built LifePo4 Lithium-ion battery that supports both 12V and 24V solar panels.
Parameters
Rating
System Capacity
800VA
Operating DC Voltage
12.8V
Switching Element
MOSFET
Charger Topology
Boost MOSFET
Battery Type
Prismatic (Li-ion)
Battery Capacity
50AH
Operating Mode
SMT/PCU/HYB (Default: SMT)
Optional DG Mode
Enable/Disable (Default: Disable)
Boost Charging Voltage – Grid
14V ± 0.1V (Settable: 13.5V – 14.2V)
Boost Charging Voltage – Solar
14.2V ± 0.1V (Settable: 14V – 14.5V)
Float Charging Voltage – Grid
13.9V ± 0.1V (Settable: 13.4V – 14.1V)
Float Charging Voltage – Solar
14.1V ± 0.1V (Settable: 13.9V – 14.4V)
Charging Current – Grid
15A ± 0.5A (Settable: 5A – 15A)
Charging Current – Solar
20A ± 0.5A (Settable: 11A – 40A)
Battery Charging Method
Bulk/Absorption/Float
Nominal Grid Voltage
230V 1Φ
Nominal Frequency
50Hz (Range: 47 – 53Hz ± 1Hz)
Grid Charging
Enable/Disable (Default: Enable)
Grid Disconnect (Grid + Solar)
100% of Charging Current or Voltage from Solar
Grid Reconnect (Battery Voltage)
12.4V (Settable: 11V – 13V)
Low Cut Voltage/Recovery
170/180V ± 3V
High Cut Voltage/Recovery
265/255V ± 3V
Output Phase
1Φ
Nominal Output Voltage
220V ± 5%
Nominal Frequency
50Hz ± 1Hz
Rated Output Amp
3A ± 0.2A
Battery Low Cut
11.6V (Range: 10V – 12.5V)
Battery High Cut
14.5V
Output Waveform
Sine Wave
Typical Efficiency
>80%
Voltage Harmonic
<3% (Linear Load)
Overload Capacity
IT Mode: >150% (Shut down after delay)
Protection
Overload, Battery Low/High, Output Short Circuit
Type of Charger
MPPT
Efficiency
>94%
Input Voltage Range (Voc)
15V – 45V
Maximum PV Power Recommended
1000W
Operating Temperature
0 – 50°C
Cooling
Fan
Max Relative Humidity
95% (Non-condensing at 25°C)
Noise @ 1 meter
50dB
Standard Compliance
IP20
Dimension (LxWxH)
340 x 240 x 320 mm
Inbuilt rMPPT Solar Charge Controller
Support 12V & 24V Solar Panel with 12V System
Battery Charging at Low Voltage (90V) Mains Input
Inbuilt Lithium LiFePo4 Battery
Compatible with IT Load
Zero Battery Maintenance & Long Battery Life
Modified Sine wave output
Easy Installation & low maintenance
Battery Charging with Multi stage (Bulk, Absorption & Float)
